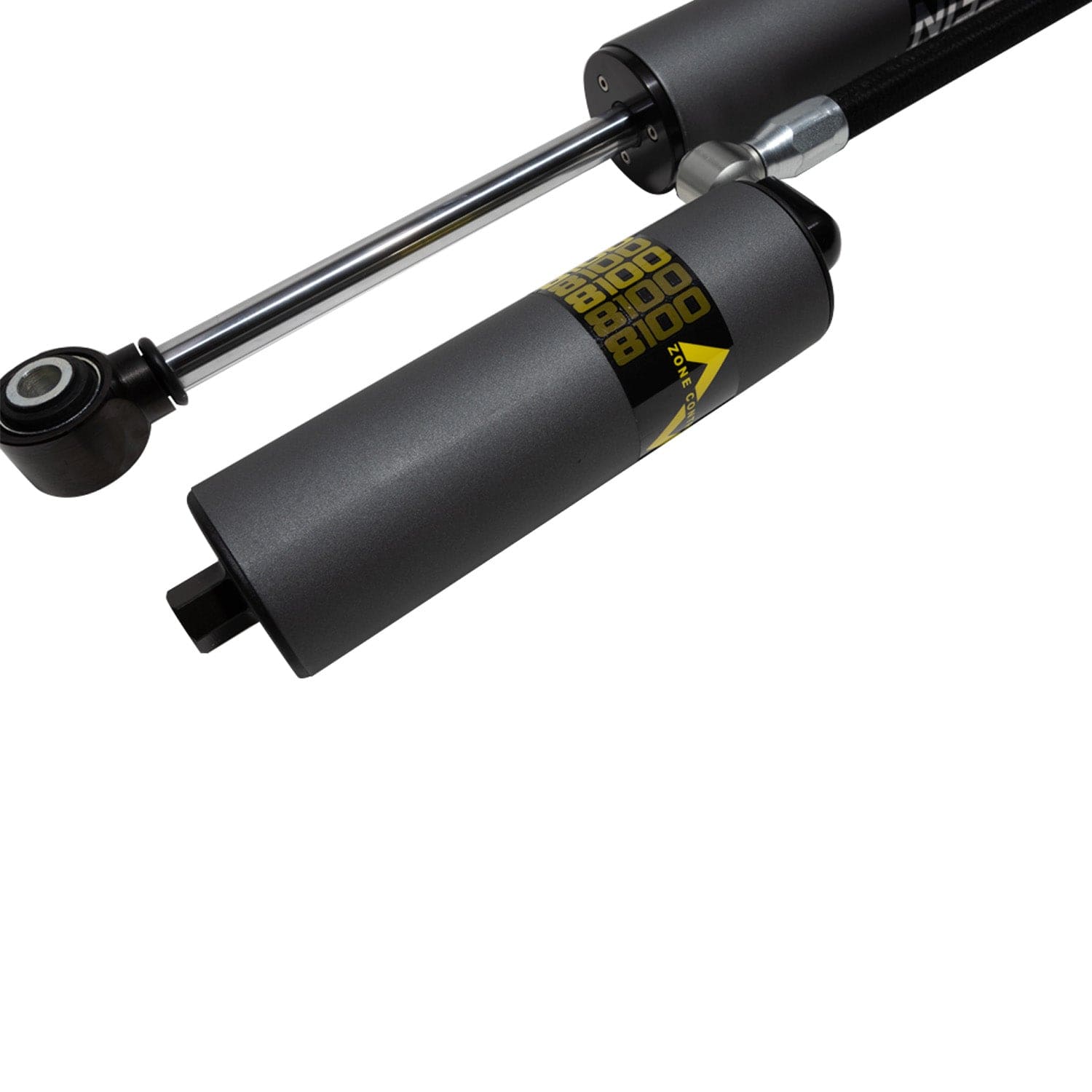

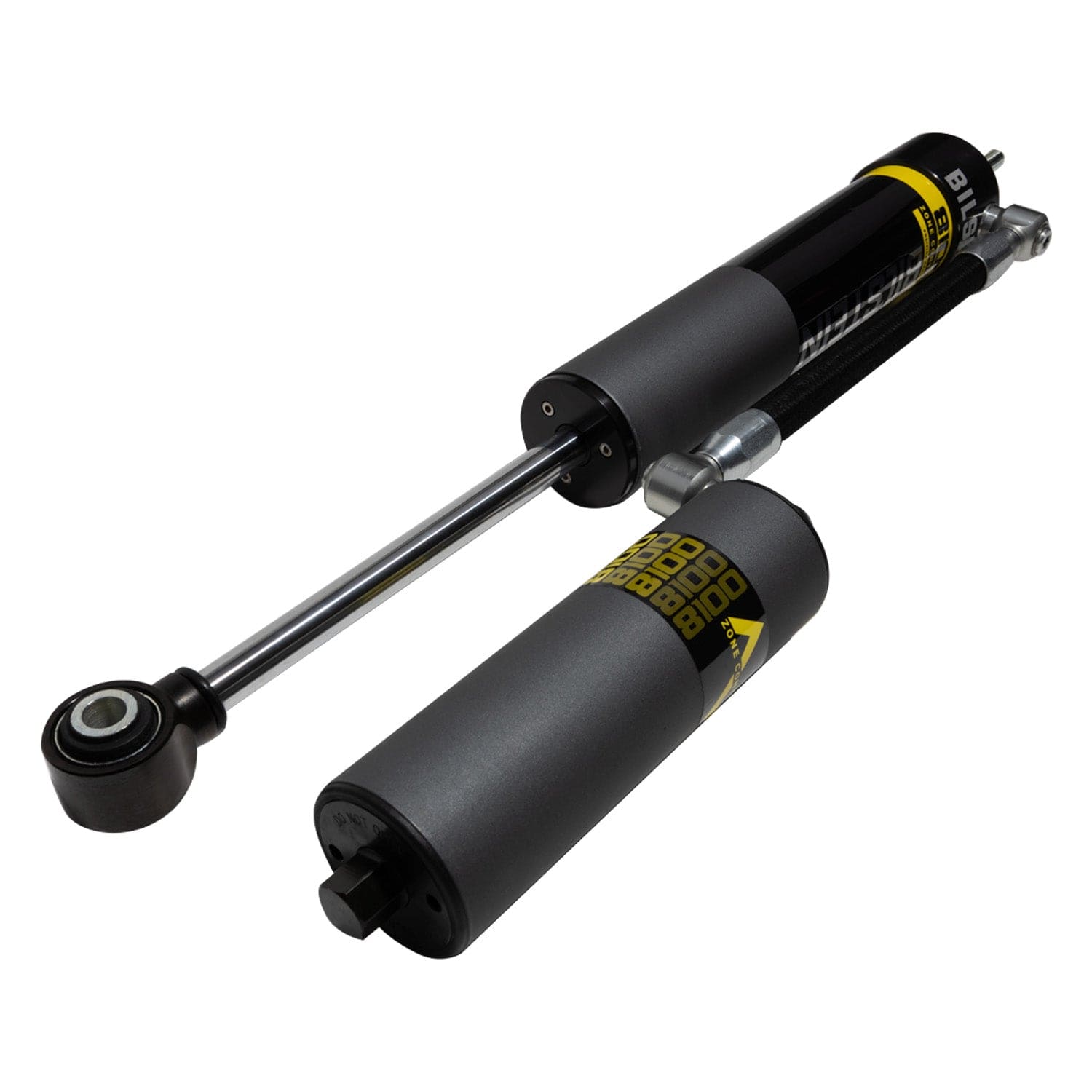

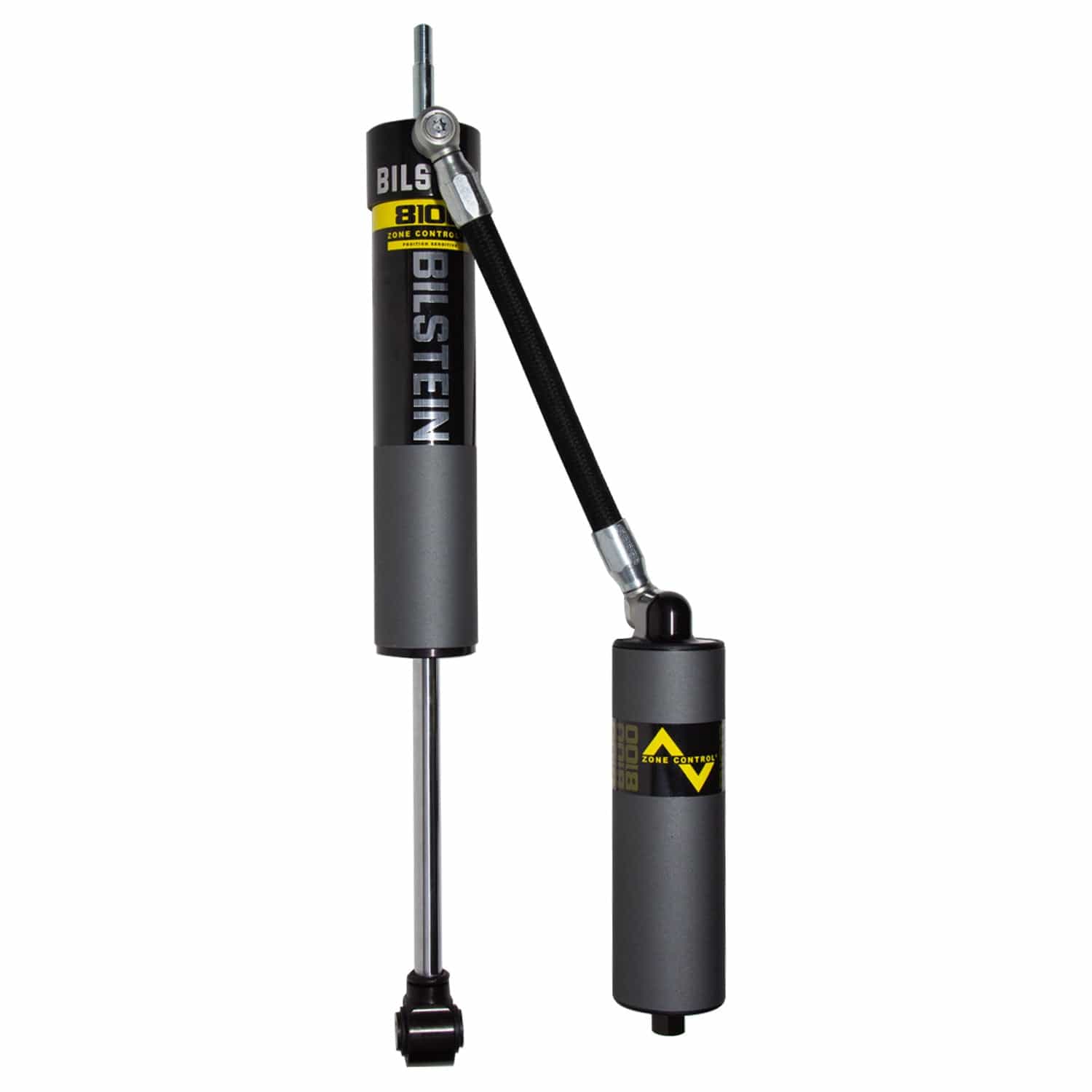

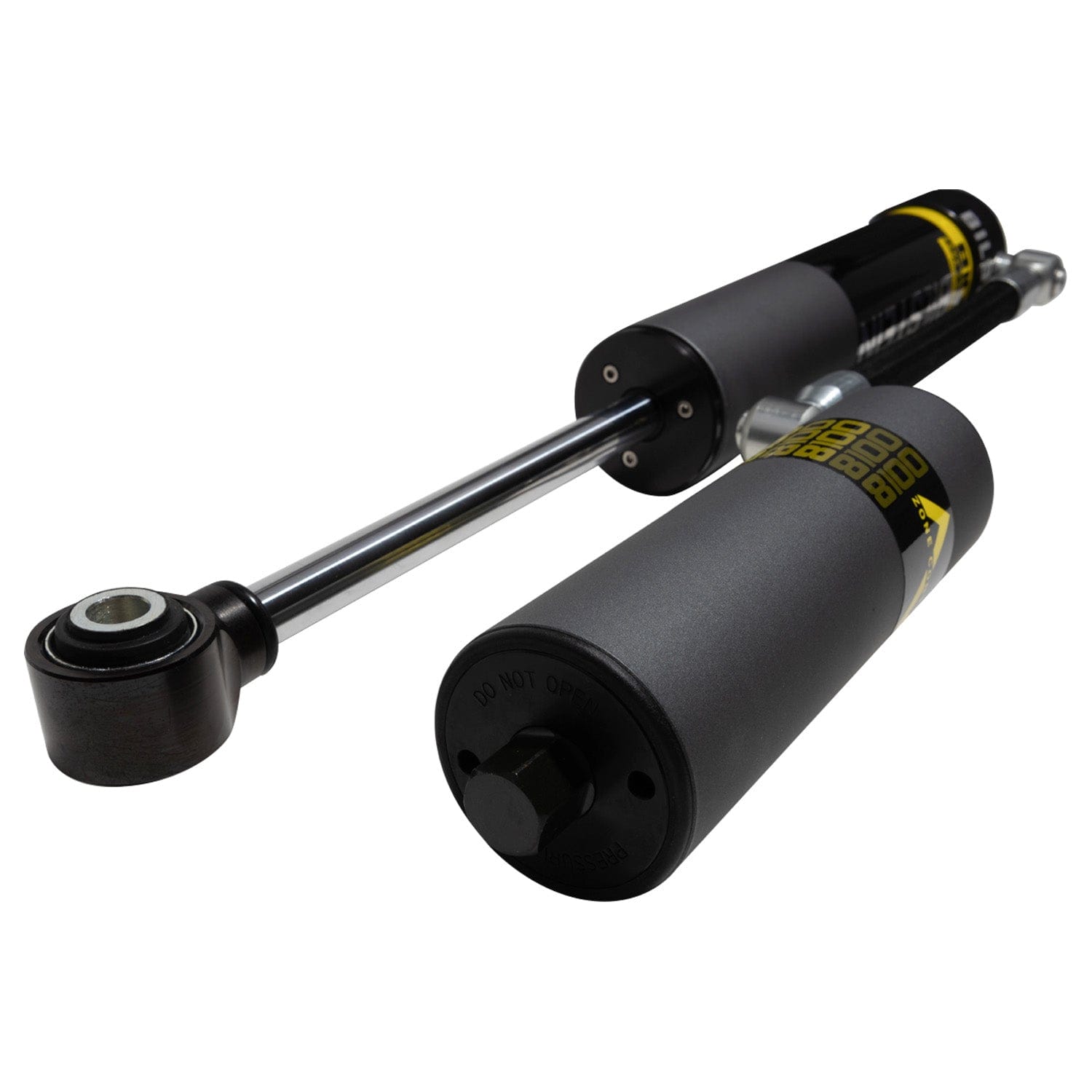

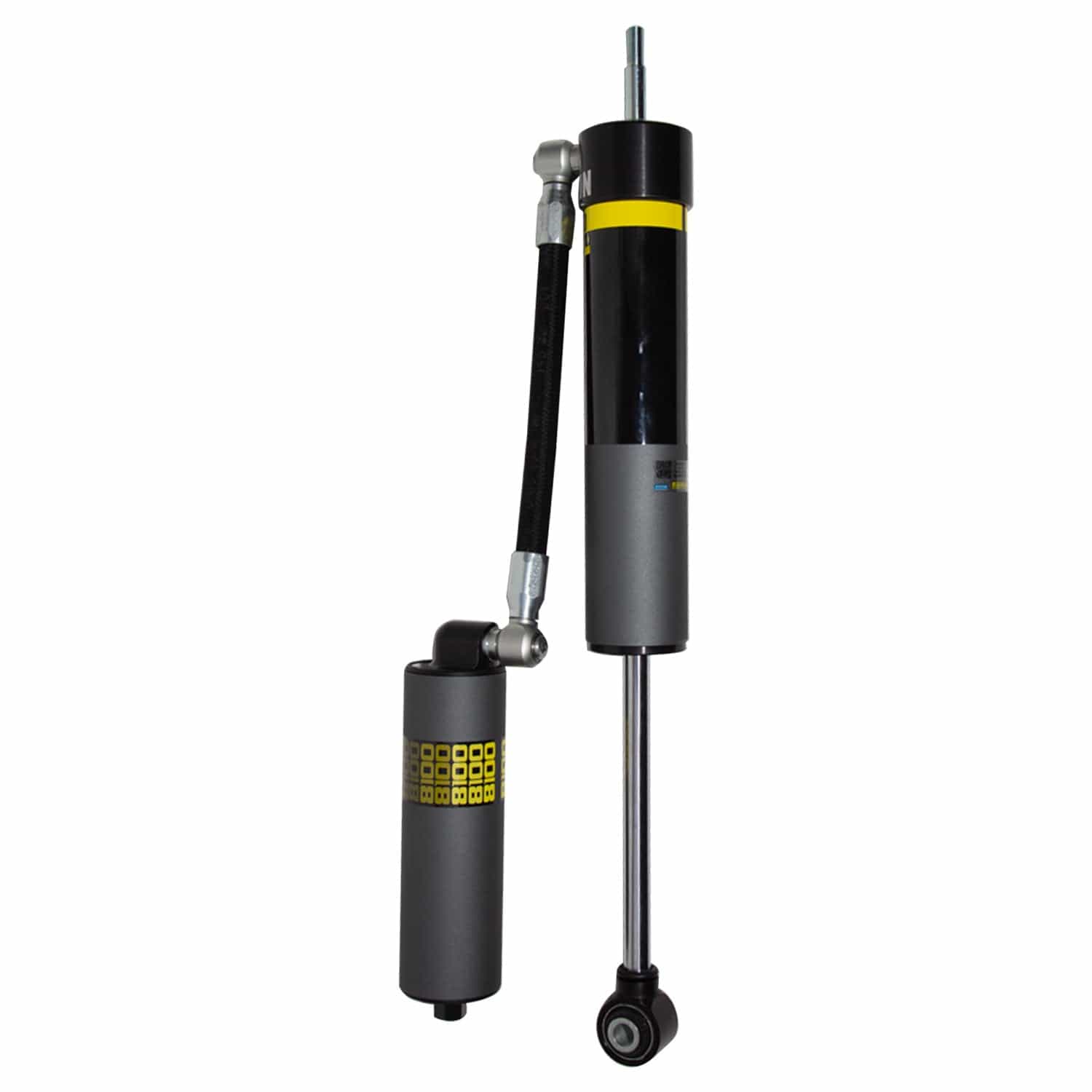

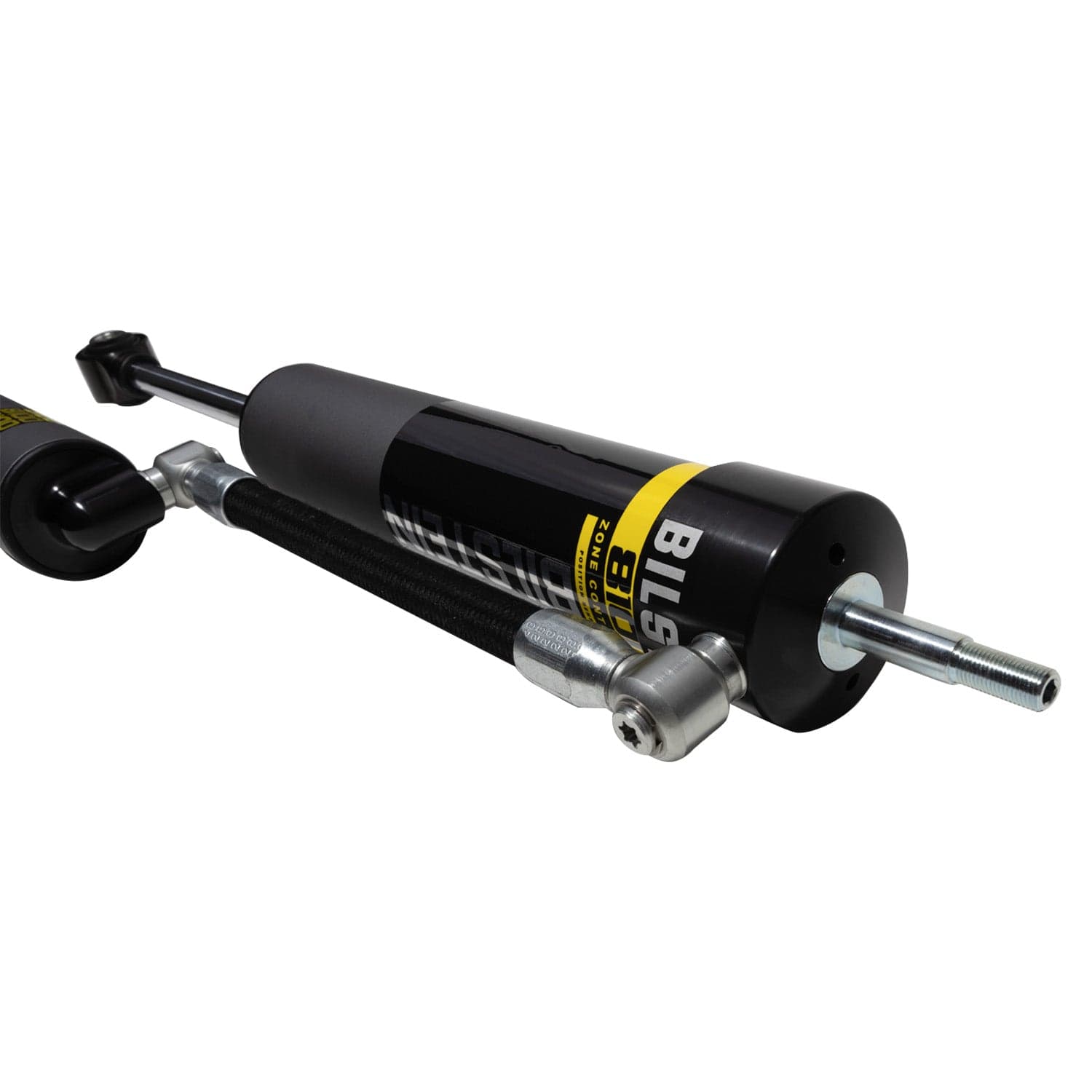

Bilstein B8 8100 ZoneControl R Front L Shock | Ram 2500 19-24 (25-302226)

Bilstein B8 8100 ZoneControl R Front L Shock | Ram 2500 19-24 (25-302226)

SKU:25-302226

Out of stock

Regular price $664.00 USD
Regular price $723.82 USD Sale price $664.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 8100 ZoneControl R Front L Shock for Ram 2500 is a high-performance reservoir shock absorber engineered for light trucks and SUVs from 2019 to 2024. Featuring Bilstein’s revolutionary ZoneControl technology, this shock provides position-sensitive rebound damping that adapts to changing driving conditions, effectively eliminating harsh suspension top-out events without the need for external limit straps. Its double piston design offers two stages of rebound valving, ensuring optimal ride quality and stability under demanding loads. The remote reservoir enhances cooling capacity, maintaining consistent performance during extended off-road or heavy-duty use. Constructed with durable materials, this shock absorber is designed to improve handling, comfort, and durability for rugged applications.

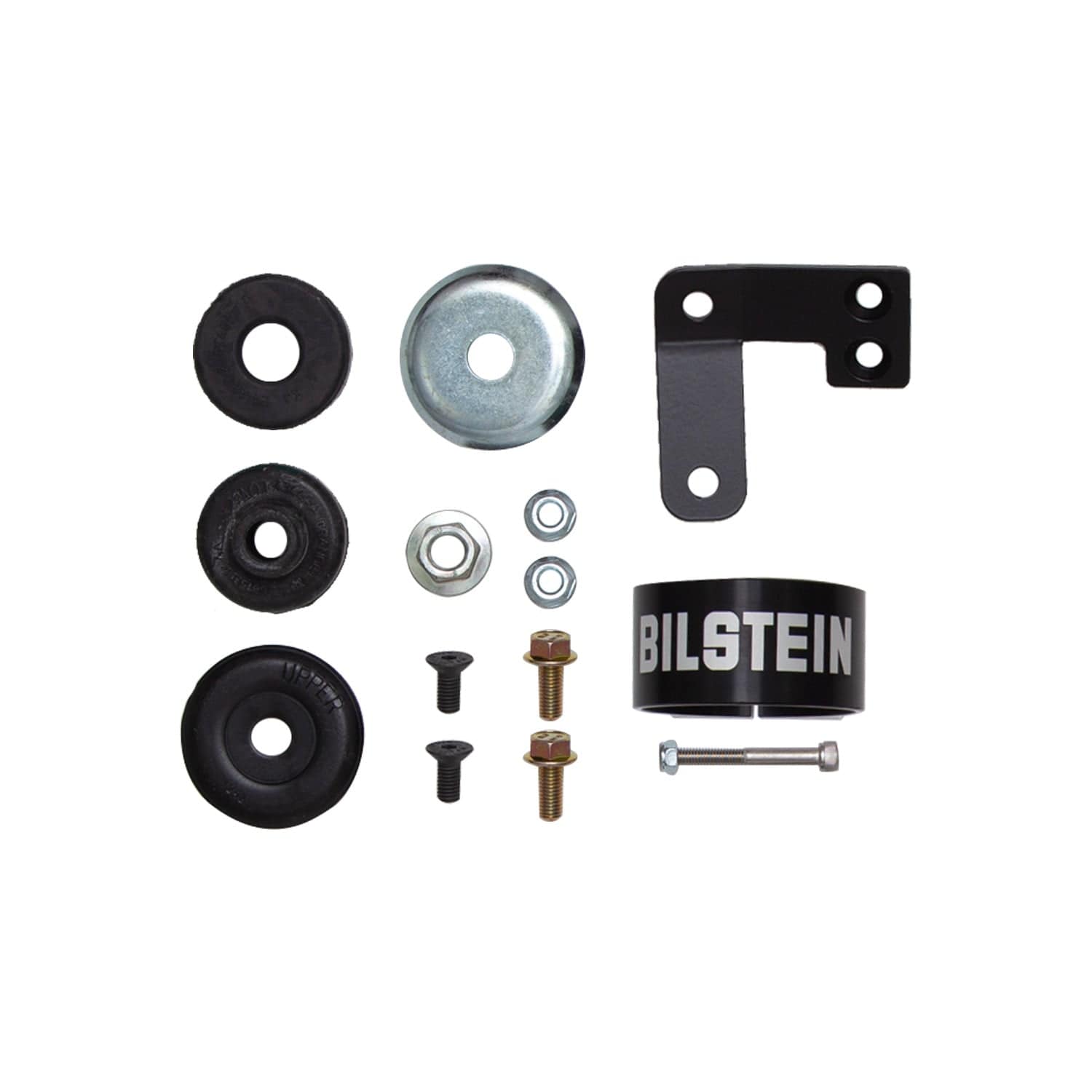

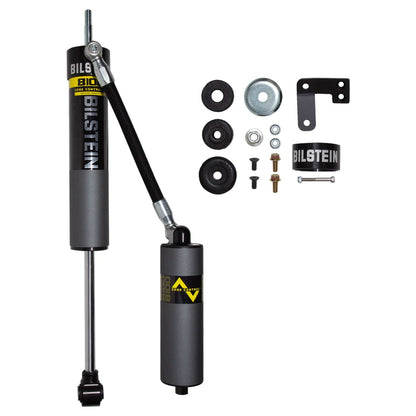

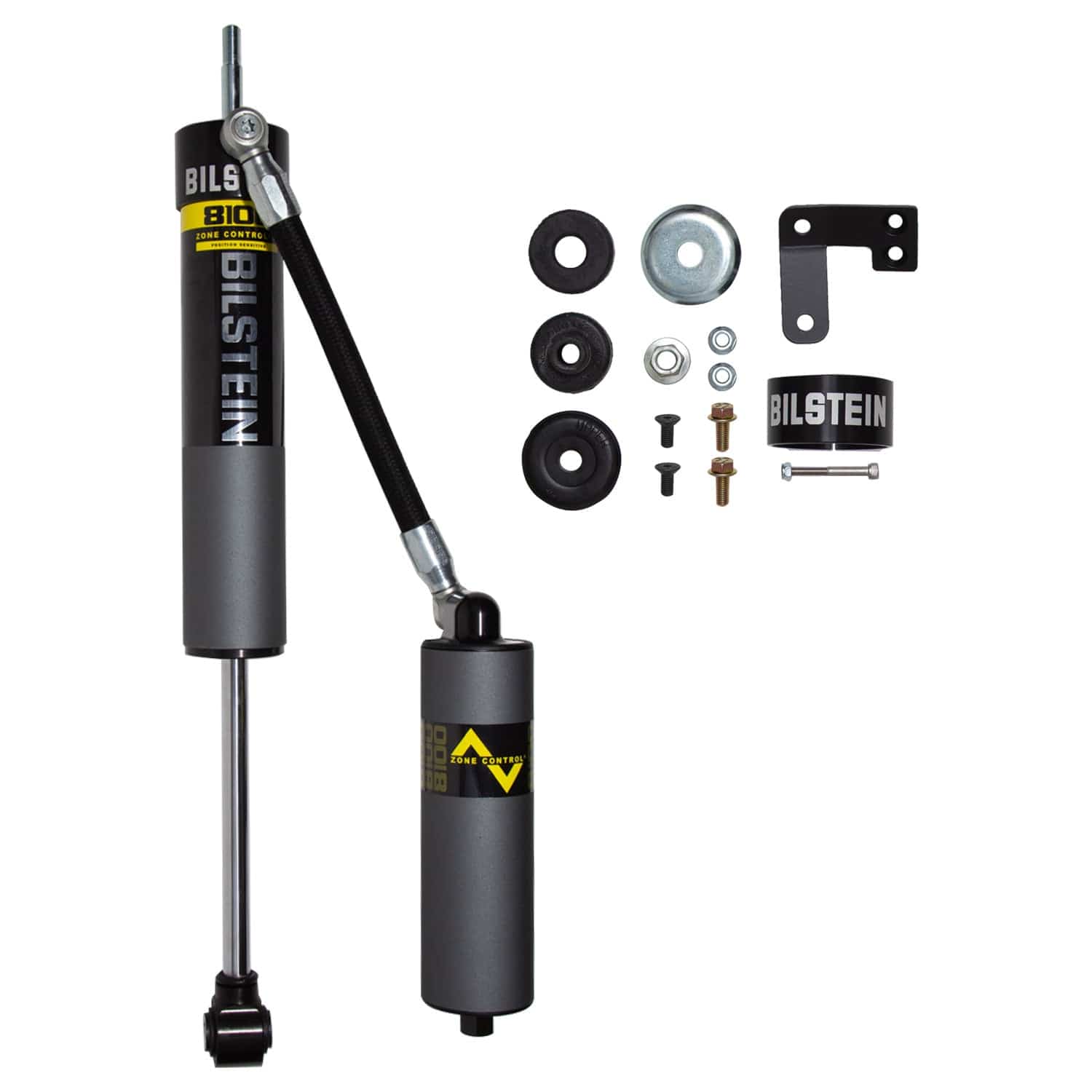

Designed specifically for 2019-2024 Ram 2500 models, this direct-fit shock absorber is suitable for light truck and SUV applications requiring enhanced suspension control. It is ideal for off-road, towing, and heavy-duty driving scenarios where superior damping and cooling are essential. The installation is straightforward, serving as a direct replacement for factory units, and the kit includes the shock absorber with all necessary mounting hardware. Compatibility is optimized for Ram 2500 trucks with light-duty or off-road-focused setups, providing a reliable upgrade for improved ride quality and suspension performance in demanding environments.

Overview

Bilstein B8 8100 (ZoneControl R) Reservoir Shock Absorbers for the 2019-2024 Ram 2500 are a direct fit, position sensitive solution designed for light trucks and SUVs. ZoneControl R is a revolutionary technology delivering position sensitive rebound damping which eliminates harsh suspension top-out events and the need for an external limit strap. The system incorporates a double piston design, offering 2 stages of rebound valving and is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount where applicable. Bilstein B8 8100 (ZoneControl R) position sensitive shocks will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Standard Features

  • 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
  • Direct fit for an easy installation
  • 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
Part Number 25-302226
Part Name Shock Absorber
Vehicle 2019-2024 Ram 2500
UPC 651860911038
Front Lift Height 2 - 2.5 in.
Body Design Smooth Body (Non-Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Collapsed Length 14.65 in.
Collapsed Length 372.2 mm
Damping Adjustable No
Extended Length 22.99 in.
Extended Length 584.0 mm
Finish EVO Grey
Internal Design Monotube
Lower Mount Type Eye 14.1 mm
Reservoir Yes
Segment Light Truck
Series B8 8100 (ZoneControl R)
Spring Seat Included No
Upper Mount Type Stem
Notes Bilstein B12 Special spring kit recommended - 53-317315 for Diesel engine or 53-317322 for Gas engine
Vehicle Fitment
  • 2019 Ram 2500
  • 2020 Ram 2500
  • 2021 Ram 2500
  • 2022 Ram 2500
  • 2023 Ram 2500
  • 2024 Ram 2500
