2019+ Ram 1500 2-3in. Stage 2 Suspension System w/ Billet Upper Control Arms

2019+ Ram 1500 2-3in. Stage 2 Suspension System w/ Billet Upper Control Arms

K213112

In stock

$3,519.75 USD
$3,519.75 USD $3,519.75 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ICON Vehicle Dynamics 2019+ Ram 1500 Stage 2 Suspension System with Billet Upper Control Arms is a high-performance suspension upgrade designed for serious drivers seeking enhanced off-road and on-road capabilities. This system features vehicle-specific tuned 2.5-inch coilover shocks with internal reservoirs for superior cooling and damping, along with ICON-engineered coil springs that improve vehicle feel across the travel range. The coilovers are height adjustable for a 2-3 inch front lift, enabling larger, more aggressive wheels and tires. Billet aluminum Delta Joint upper control arms add strength, durability, and help maintain factory alignment specifications, offering on-vehicle caster and camber adjustment. The dual-rate rear coil springs provide a softer ride height spring rate with a firmer overload rate, delivering excellent ride comfort, bottoming resistance, and off-road performance. The system also includes 1.5-inch rear lift for a level stance and ICON 2.0 Aluminum Series internal reservoir shocks for balanced front-to-rear performance.

Designed for 2019 through 2023 Ram 1500 models, this suspension system is compatible with trucks equipped with the standard chassis and is suitable for both street and off-road use. It serves as a comprehensive upgrade to improve wheel travel, ride quality, and vehicle control, whether on rugged trails or daily driving. The kit includes coilover shocks, billet upper control arms, and rear shocks, providing a bolt-on installation that enhances the truck’s overall performance and durability. This system is ideal for drivers looking to increase off-road capability, improve handling, and achieve a more aggressive stance without sacrificing ride comfort.

Overview

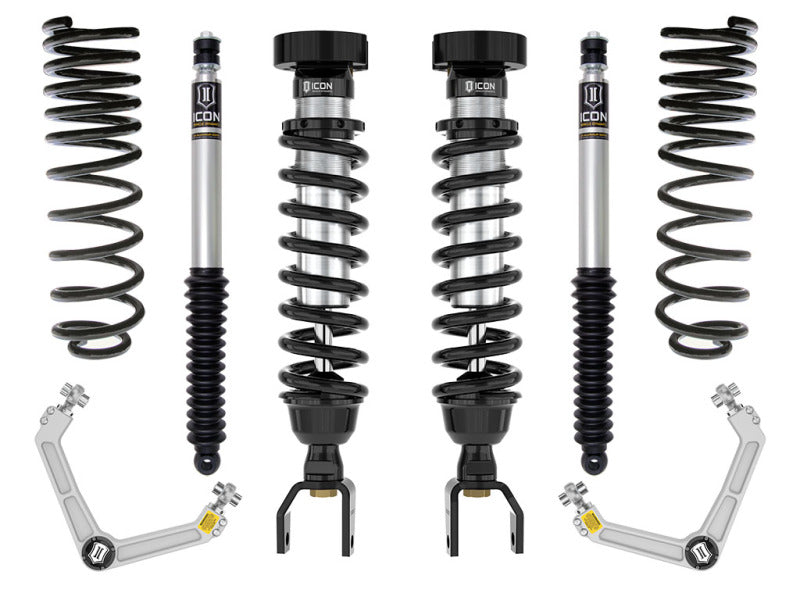

ICON Vehicle Dynamics 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 1.5” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ram 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
