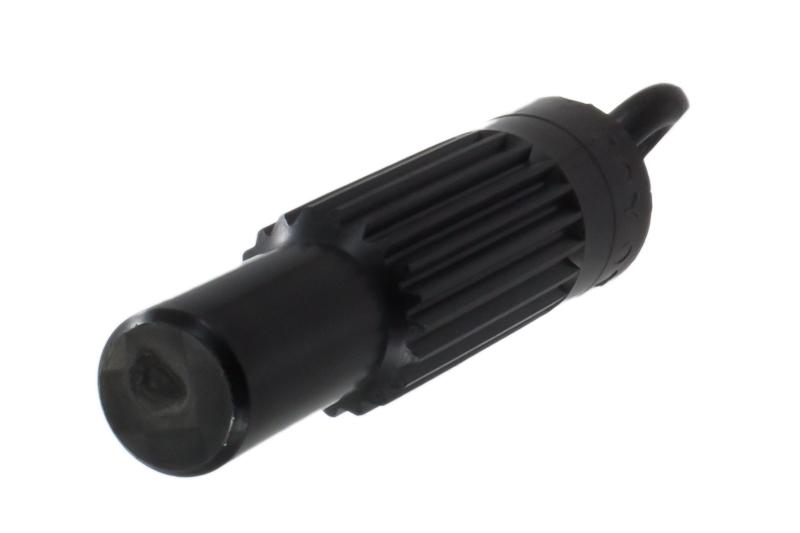

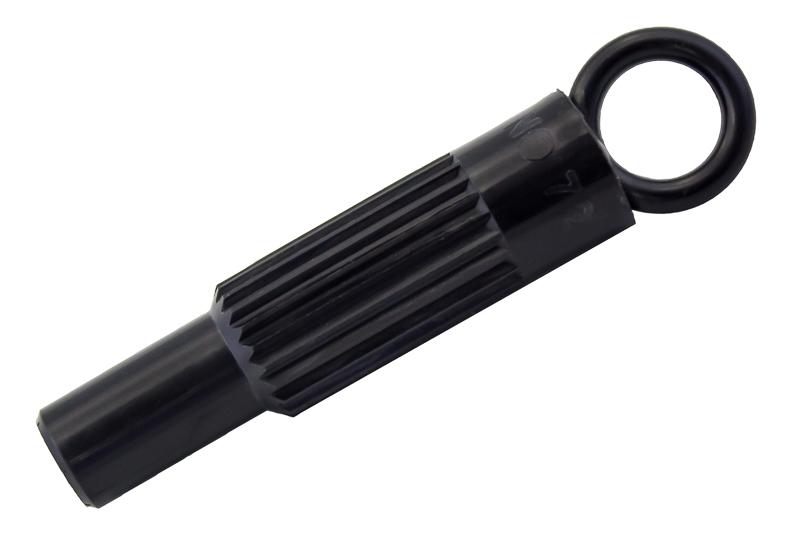

ACT Alignment Tool

1991–1995 Toyota MR2

Part #: AT72

Overview

The ACT Alignment Tool AT72 is an essential accessory designed specifically for enthusiasts and professional mechanics working on the Toyota MR2 from 1991 to 1995. This precision tool simplifies the process of installing an ACT pressure plate by ensuring perfect alignment of the clutch disc with the pilot bearing. Proper alignment is crucial for smooth clutch operation, preventing damage to components, and ensuring a hassle-free installation experience. Whether you're a seasoned technician or a DIY enthusiast, this alignment tool helps you achieve professional results with ease.

By using the ACT Alignment Tool AT72, you can significantly reduce installation time and eliminate common misalignment issues that can lead to uneven wear or clutch chatter. Its durable construction and precise design make it a reliable addition to your automotive toolkit, especially when working with performance clutches or upgrading your clutch system for better driving experience.

Key Features

The ACT Alignment Tool AT72 offers several features tailored for ease of use and durability:

• Precise Fitment: Designed specifically for the Toyota MR2 (1991-1995), ensuring accurate alignment during clutch installation.

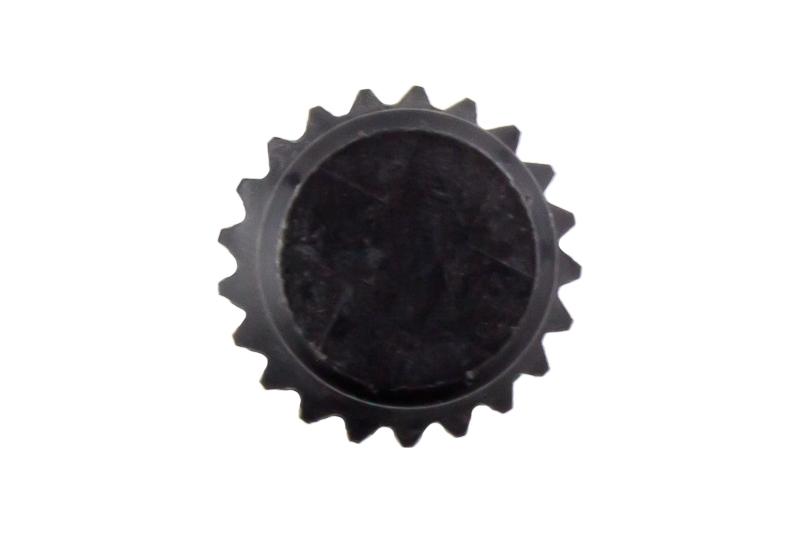

• Optimal Compatibility: Fits the spline quantity of 21 and input shaft diameter of 1.125 inches, matching OEM specifications for a perfect fit.
• Durable Construction: Made from high-quality materials that withstand the rigors of automotive use, providing long-lasting performance.
• Lightweight Design: Weighing only 0.1 lbs., it is easy to handle and store in your toolbox.
• Ease of Use: Facilitates quick and accurate alignment, reducing installation time and minimizing frustration.
• Universal Application: While tailored for the Toyota MR2, its straightforward design makes it a valuable tool for similar applications requiring precise clutch alignment.

Construction & Design

The ACT Alignment Tool AT72 features a robust yet lightweight design crafted from high-strength materials to ensure durability and precision. Its compact form allows for easy handling and storage, making it an ideal addition to any mechanic’s or enthusiast’s toolkit. The tool's spline and diameter specifications are engineered to match OEM components perfectly, ensuring that the clutch disc aligns correctly with the pilot bearing during installation. This precise fitment helps prevent misalignment issues that can cause uneven wear, noise, or clutch failure over time.

Installation & Fitment

Using the ACT Alignment Tool AT72 is straightforward and designed to streamline the clutch installation process. Simply insert the tool into the clutch disc, aligning the spline with the input shaft of the transmission. This ensures the clutch disc is perfectly centered, allowing for effortless installation of the pressure plate and transmission assembly. No additional tools or adjustments are required. The alignment process becomes quicker and more accurate, reducing the risk of damaging the clutch components or misaligning the assembly.

There are no special modifications, cutting, or tuning needed when using this tool. It is a direct-fit accessory that simplifies a typically challenging step in clutch replacement or upgrade procedures.

What's Included

• ACT Alignment Tool AT72
• Installation instructions
• Warranty information

Ideal For

• Professional automotive technicians performing clutch replacements on Toyota MR2 (1991-1995)
• DIY enthusiasts upgrading or replacing clutch components
• Anyone seeking a precise, reliable tool to ensure proper clutch disc alignment during installation

Emissions Note

This product is a specialized alignment tool and does not impact vehicle emissions or legality. It is intended solely for use during clutch installation and does not alter any emissions systems or compliance status.
