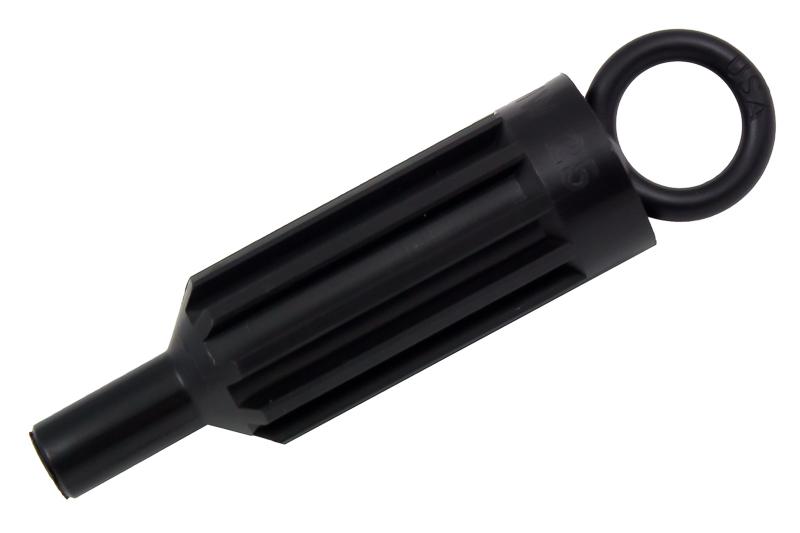

ACT Alignment Tool

2001–2006 BMW M3

Part #: AT25

Overview

The ACT Alignment Tool AT25 is an essential accessory designed specifically for BMW M3 enthusiasts and professional mechanics. This precision tool simplifies the process of installing an ACT pressure plate by ensuring perfect alignment of the clutch disc with the pilot bearing. Proper alignment is crucial for smooth engagement, optimal performance, and the longevity of your clutch components. Whether you're performing a clutch replacement or upgrading your drivetrain, this alignment tool helps you achieve professional-level results with ease.

Constructed for durability and ease of use, the ACT Alignment Tool AT25 is ideal for both DIY enthusiasts and experienced technicians working on 2001-2006 BMW M3 models. Its straightforward design reduces installation time and minimizes the risk of misalignment, which can lead to uneven wear or clutch failure. With this tool, you'll get a precise, hassle-free setup that ensures your clutch system operates flawlessly from the start.

Key Features

The ACT Alignment Tool AT25 offers several key features that make it an indispensable part of your clutch installation toolkit:

• Precision Alignment: Designed to align the clutch disc perfectly with the pilot bearing, ensuring smooth engagement and optimal transfer of power.
• Compatibility: Specifically engineered for BMW M3 models from 2001 to 2006, with a spline quantity of 10 and an input shaft diameter of 1.375 inches.
• Durable Construction: Made from high-quality materials that withstand repeated use and provide long-lasting reliability.
• Lightweight Design: Weighing only 0.1 lbs., this tool is easy to handle and store, making it convenient for both shop and personal use.
• Ease of Use: Simple to operate, requiring no special tools or skills, which helps reduce installation time and effort.
• Manufacturer Support: Backed by a 1-year warranty, ensuring quality and customer satisfaction.

Construction & Design

The ACT Alignment Tool AT25 features a robust yet lightweight design, crafted from durable materials that resist wear and deformation. Its precise dimensions, including a spline quantity of 10 and an input shaft diameter of 1.375 inches, ensure a perfect fit for the specified BMW M3 models. The tool's compact size and ergonomic shape facilitate easy handling during clutch installation, allowing for quick and accurate alignment without the need for additional adapters or modifications. Its straightforward design minimizes the risk of errors, helping you achieve professional results every time.

Installation & Fitment

Using the ACT Alignment Tool AT25 is straightforward and requires no special skills or tools beyond what is typically available in a standard workshop. Simply insert the tool into the clutch assembly, align the clutch disc with the pilot bearing, and secure it in place. This ensures that the clutch disc is perfectly centered, allowing for smooth and trouble-free installation of the pressure plate and transmission. No cutting, drilling, or tuning is necessary, making this a quick and reliable solution for your clutch service.

• Designed specifically for BMW M3 (01-06) models
• Compatible with vehicles featuring a 10-spline input shaft and 1.375-inch diameter input
• Easy to use with no additional tools required

What's Included

• ACT Alignment Tool AT25
• Installation instructions

Ideal For

This alignment tool is perfect for automotive technicians, performance enthusiasts, and DIYers performing clutch replacements or upgrades on BMW M3 models from 2001 to 2006. It ensures precise alignment, reduces installation time, and helps maintain the integrity of your clutch system for reliable performance.
