ACT Alignment Tool

1986 Mercury Capri / 1986–2017 Ford Mustang 4.6L / 5.0L

Part #: AT111EX

Overview

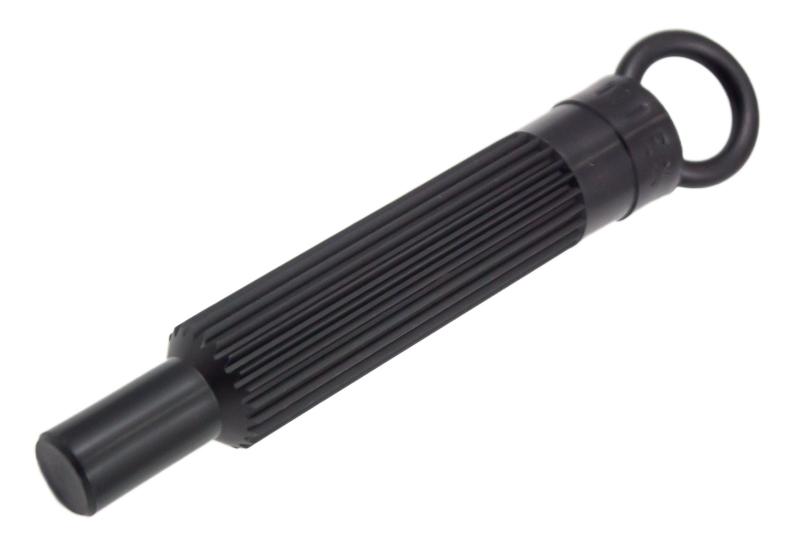

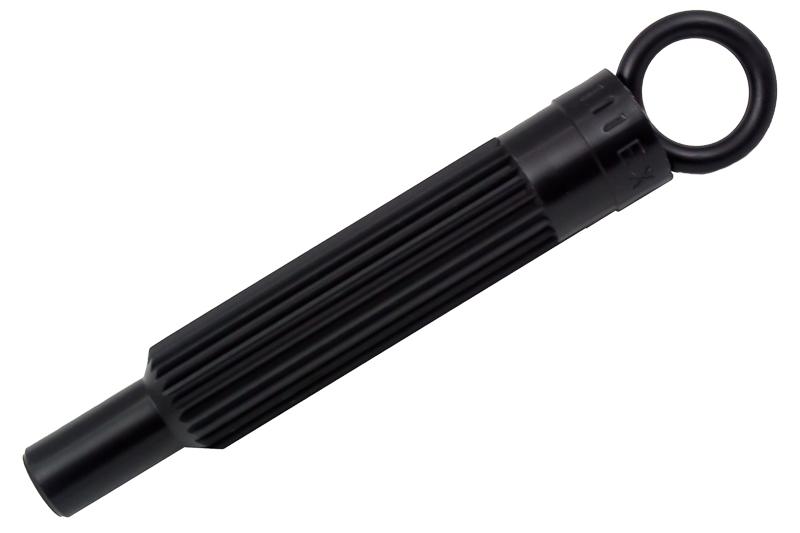

The ACT Alignment Tool AT111EX is an essential accessory for anyone installing an ACT pressure plate or clutch kit on their Ford Mustang or Mercury Capri. Designed to simplify the clutch installation process, this precision tool ensures perfect alignment of the clutch disc with the pilot bearing, making the entire procedure faster, easier, and more accurate. Whether you're a professional mechanic or a dedicated enthusiast performing a DIY clutch replacement, this alignment tool helps you achieve professional results with minimal effort.

Constructed for durability and ease of use, the ACT Alignment Tool is compatible with a range of vehicles, including the iconic Ford Mustang from 1986 to 2017 and the Mercury Capri from 1986. Its straightforward design allows for quick setup and reliable alignment, reducing the risk of misalignment that can cause clutch chatter, uneven wear, or transmission issues. With this tool, you'll get a precise fit every time, ensuring your clutch assembly functions smoothly and reliably.

Key Features

The ACT Alignment Tool AT111EX offers several features that make it an indispensable part of your clutch installation toolkit:

• Precisely machined from high-quality materials to ensure accurate alignment during clutch assembly.
• Designed specifically for Ford Mustang models from 1986 to 2017 and Mercury Capri from 1986, accommodating various engine sizes and configurations.

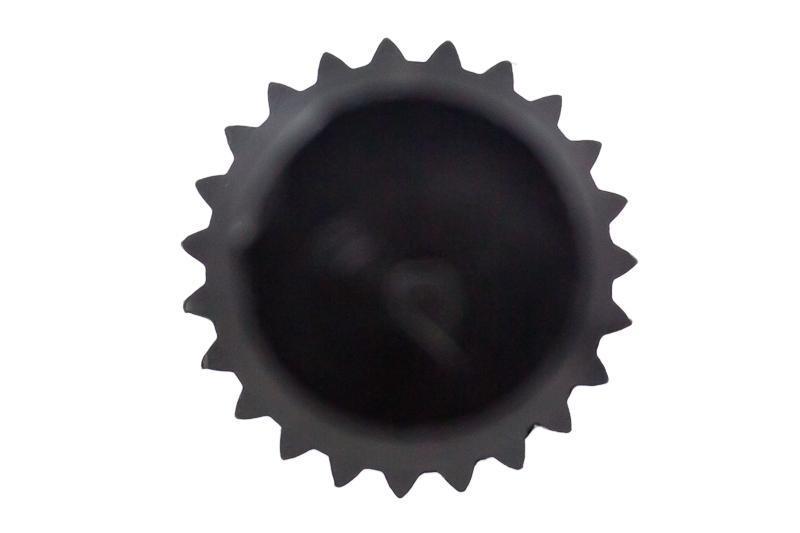

• Features a 1-inch input shaft diameter and 23 spline quantity, matching the specifications of most ACT pressure plates and clutch discs for these vehicles.
• Lightweight at only 0.1 lbs., making it easy to handle and store in your toolbox or garage.
• Simple to use—just insert into the transmission input shaft to align the clutch disc perfectly with the pilot bearing, then remove after installation.
• Manufactured by ACT, a trusted name in high-performance clutch components and accessories, ensuring quality and reliability.
• Includes comprehensive installation instructions to guide you through the process step-by-step.
• Backed by ACT’s warranty, providing peace of mind with your purchase.

Construction & Design

The ACT Alignment Tool AT111EX is crafted from durable, high-strength materials designed to withstand repeated use in a workshop or garage setting. Its precision-machined surface ensures a perfect fit with the transmission input shaft, preventing any wobble or misalignment during clutch installation. The compact and lightweight design allows for easy handling and maneuverability, even in tight spaces. The tool's robust construction guarantees long-lasting performance, making it a reliable addition to your automotive toolkit for years to come.

Installation & Fitment

Using the ACT Alignment Tool AT111EX is straightforward and requires no special tools or skills. To install, simply insert the tool into the transmission input shaft after placing the clutch disc onto the flywheel. The tool's precise diameter and spline count ensure the clutch disc is perfectly aligned with the pilot bearing, facilitating a smooth and hassle-free installation. Once the clutch is properly positioned, remove the alignment tool and complete the assembly. No cutting, drilling, or additional adjustments are necessary, making this a quick and efficient process for both professional mechanics and DIY enthusiasts.

What's Included

• ACT Alignment Tool AT111EX
• Installation instructions

Ideal For

• Professional automotive technicians performing clutch replacements on Ford Mustang and Mercury Capri models
• DIY enthusiasts looking for a reliable tool to simplify clutch installation
• Anyone seeking to ensure precise alignment for optimal clutch performance and longevity

Emissions Note

This product is a specialized alignment tool designed solely for installation purposes and does not impact emissions or legal compliance. It is intended for use in vehicle repair and maintenance, and does not alter or modify any emissions-related components.
