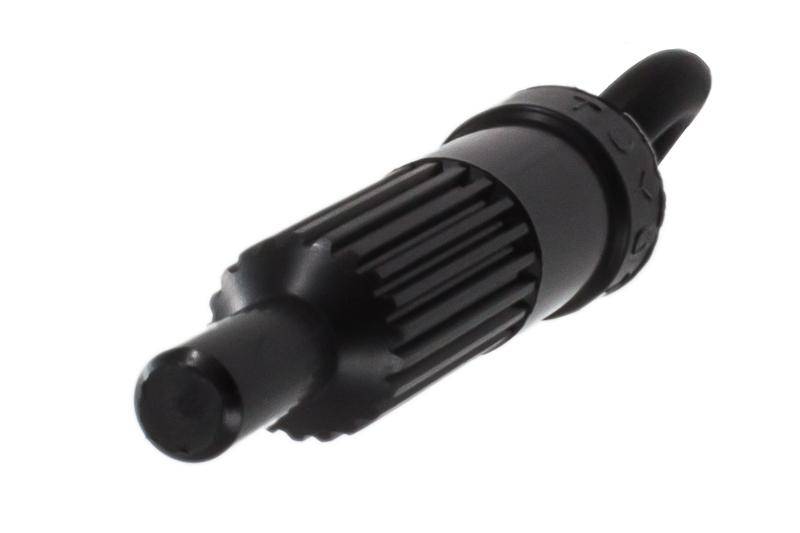

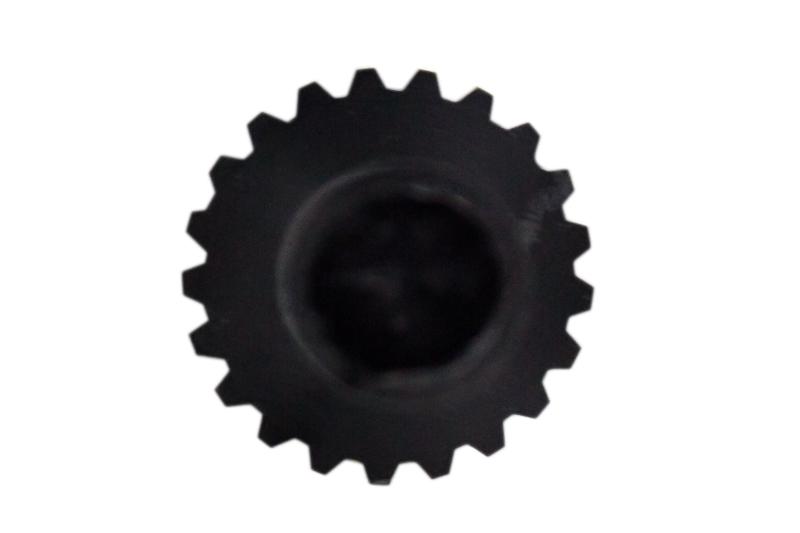

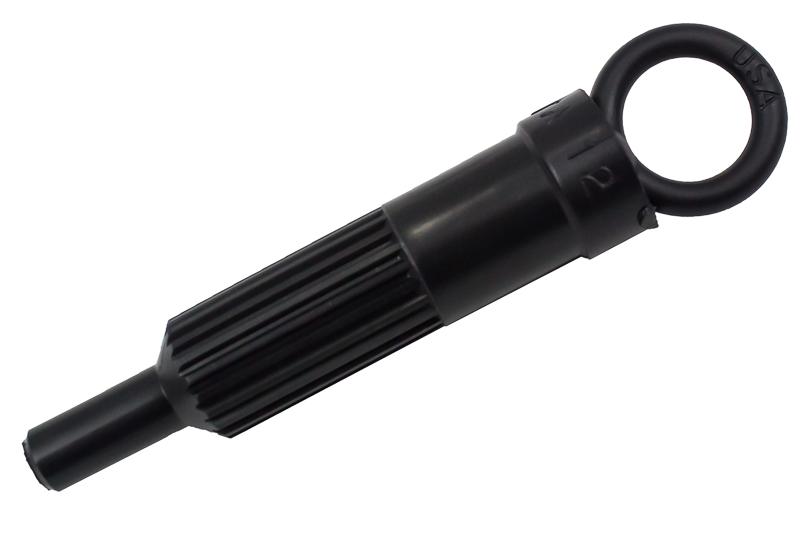

ACT Alignment Tool

1987 Toyota Corolla / 1969–1970 Toyota Corona 1.6L / 2.0L

Part #: AT12

Overview

The ACT Alignment Tool AT12 is an essential accessory for anyone installing an ACT pressure plate or clutch assembly on compatible Toyota vehicles. Designed specifically for the 1987 Toyota Corolla and earlier models of the Toyota Corona, this tool simplifies the clutch installation process by ensuring precise alignment of the clutch disc with the pilot bearing. Whether you're a professional mechanic or a dedicated DIY enthusiast, this alignment tool helps you achieve a perfect fit every time, reducing installation time and minimizing the risk of misalignment that can lead to clutch chatter or uneven wear.

Constructed with durability and ease of use in mind, the ACT Alignment Tool AT12 is a must-have for smooth, hassle-free clutch replacements. Its lightweight design makes handling and storage straightforward, while its precise engineering guarantees consistent results. If you're upgrading or replacing your clutch, this tool will help you get the job done correctly the first time, ensuring optimal performance and longevity of your clutch components.

Key Features

The ACT Alignment Tool AT12 offers a range of features tailored to make clutch installation straightforward and accurate:

• Precise Fitment: Designed specifically for 1969-1970 Toyota Corona and 1980-1987 Toyota Corolla models, ensuring perfect alignment with the pilot bearing and input shaft.
• Compatibility: Suitable for use with ACT pressure plates and other compatible clutch components, streamlining the installation process.
• Durable Construction: Made from high-quality materials that withstand repeated use, providing long-lasting reliability.
• Lightweight Design: Weighing only 0.1 lbs., this tool is easy to handle and store, making your work more efficient.
• Ease of Use: Simple to insert and remove, allowing for quick setup and removal during clutch assembly.
• Time-Saving: Facilitates quick and accurate alignment, reducing installation time and preventing common misalignment issues.
• Comprehensive Compatibility: Suitable for a range of Toyota models from the late 1960s through the 1980s, making it a versatile addition to your toolkit.

Construction & Design

The ACT Alignment Tool AT12 is crafted from high-strength, lightweight materials that ensure durability without adding unnecessary weight. Its precise dimensions are engineered to match the pilot bearing and input shaft diameters of the specified Toyota models, providing a snug and accurate fit. The tool's design features smooth edges and a robust structure to withstand the pressures of installation work, while its compact size allows for easy handling in tight engine bays. The high-quality construction ensures that the tool maintains its shape and accuracy over multiple uses, making it a reliable component of your automotive toolkit.

Installation & Fitment

Using the ACT Alignment Tool AT12 is straightforward. Simply insert the tool into the clutch disc, aligning it with the pilot bearing and input shaft. This ensures that the clutch disc is perfectly centered, allowing for effortless installation of the pressure plate and transmission. The tool's design eliminates the need for manual alignment adjustments, saving time and reducing frustration. No additional tools or modifications are required, making it a convenient, bolt-on accessory that streamlines your clutch replacement process.

• Insert the alignment tool through the clutch disc hub.
• Align the tool with the pilot bearing and input shaft.
• Secure the clutch assembly and proceed with installation.
• Remove the tool once the pressure plate is secured.

This process ensures that the clutch components are perfectly aligned, promoting smooth operation and even wear over time. The ACT Alignment Tool AT12 is designed to fit seamlessly with your existing clutch setup, providing a professional-quality installation every time.

What's Included

• ACT Alignment Tool AT12
• Installation Instructions
• Warranty Card

Ideal For

• Professional mechanics performing clutch replacements on Toyota Corolla and Corona models
• DIY enthusiasts upgrading or replacing their clutch components
• Automotive shops seeking reliable, reusable alignment tools

Emissions Note

This product is a specialized tool designed solely for installation purposes and does not impact vehicle emissions or legality. It is intended for use in standard repair and maintenance procedures.
