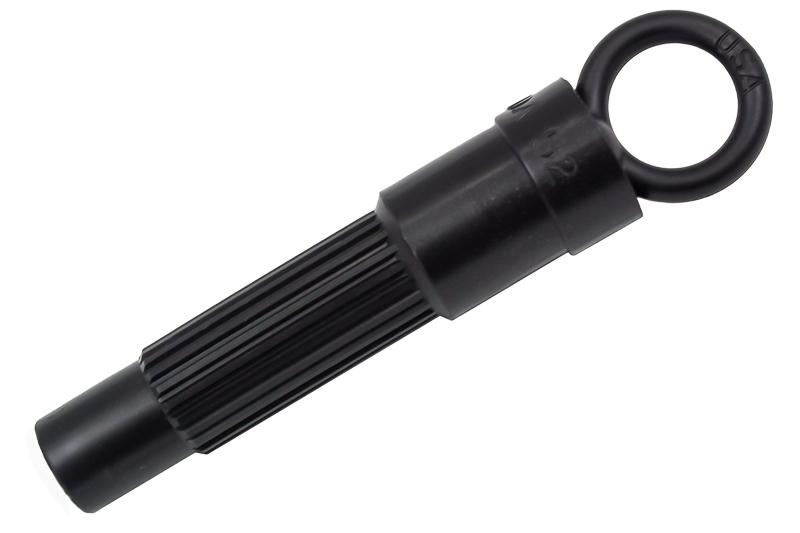

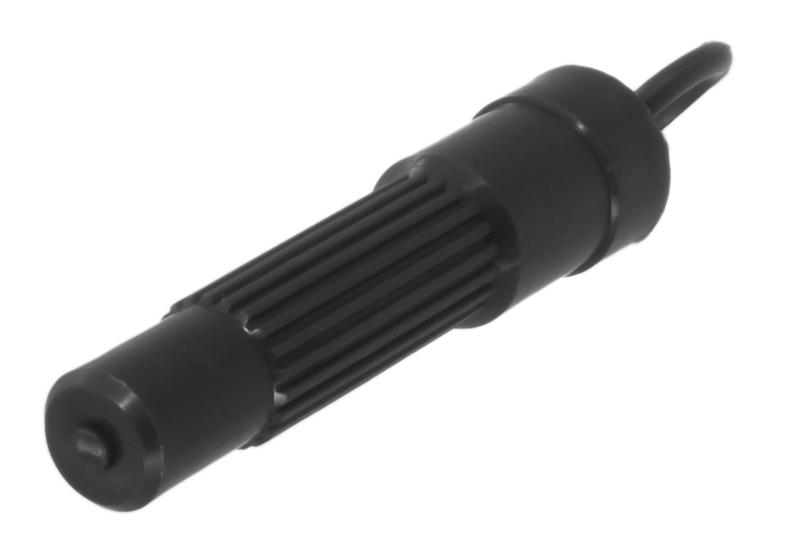

ACT Alignment Tool

1983–1989 Honda Accord / 1983–1987 Honda Prelude 0.875-inch Input Shaft Diameter

Part #: AT52

Overview

The ACT Alignment Tool AT52 is an essential accessory designed to simplify the installation of your ACT pressure plate and clutch assembly on compatible Honda models. Specifically engineered for the 1983-1989 Honda Accord and 1983-1987 Honda Prelude, this tool ensures precise alignment of the clutch disc with the pilot bearing, making your clutch replacement process smoother and more efficient. Whether you're a professional mechanic or a dedicated enthusiast working on your own vehicle, this alignment tool helps you achieve perfect alignment every time, reducing installation time and preventing common misalignment issues.

By using the ACT Alignment Tool AT52, you'll experience easier clutch installation, which can lead to improved clutch engagement and overall drivability. Its lightweight design and durable construction make it a reliable addition to your automotive toolkit, ensuring consistent performance across multiple uses. This tool is ideal for those who want a straightforward, reliable solution to align clutch components accurately without the need for additional assistance or makeshift solutions.

Key Features

The ACT Alignment Tool AT52 offers a range of features tailored to facilitate a hassle-free clutch installation process:

• Precisely Sized for Honda Applications: Designed specifically for Honda Accord and Prelude models from 1983 to 1989, with an input shaft diameter of 0.875 inches, ensuring a perfect fit for your vehicle's transmission input shaft.
• Durable Construction: Made from high-quality materials that withstand the rigors of repeated use, providing long-lasting reliability during multiple clutch replacements.
• Lightweight and Compact: Weighing only 0.1 lbs., this tool is easy to handle and store, making it a convenient addition to your automotive toolkit.
• Easy to Use: Simply insert the tool into the clutch disc's spline, align it with the pilot bearing, and proceed with installation. Its design ensures the clutch disc remains perfectly centered, reducing the risk of misalignment.
• Universal Compatibility: While specifically designed for Honda models with a 0.875-inch input shaft, its straightforward design makes it suitable for various clutch installations requiring precise alignment.

Construction & Design

The ACT Alignment Tool AT52 features a robust yet lightweight design crafted from durable materials that resist wear and deformation. Its compact form factor allows for easy handling during clutch assembly, and its precise dimensions ensure compatibility with the specified Honda models. The tool's spline section is engineered to match the 21-spline configuration of the Honda input shaft, providing a secure fit that maintains alignment throughout the installation process. Its simple, no-frills design focuses on functionality, making it a reliable choice for both professional mechanics and DIY enthusiasts.

Installation & Fitment

Using the ACT Alignment Tool AT52 is straightforward and requires no special tools or additional equipment. To install, insert the tool into the clutch disc's spline, ensuring it seats fully and aligns with the pilot bearing. Then, position the clutch assembly onto the flywheel, with the alignment tool maintaining perfect centering of the clutch disc. This process helps prevent common issues such as uneven clutch engagement or difficulty in aligning the clutch during installation. No cutting, drilling, or tuning is required, making it a quick and clean solution for your clutch replacement project.

• Simply insert the alignment tool into the clutch disc's spline.
• Align the clutch disc with the pilot bearing using the tool.
• Install the pressure plate and secure the assembly.
• Remove the tool once the clutch is properly installed.

What's Included

• ACT Alignment Tool AT52 for Honda Accord and Prelude
• Installation instructions

Ideal For

• Professional mechanics performing clutch replacements on Honda Accord and Prelude models from 1983 to 1989
• DIY enthusiasts seeking an accurate, easy-to-use alignment solution
• Anyone looking to streamline the clutch installation process and ensure perfect alignment

Emissions Note

This product is designed solely for use in clutch installation and does not impact vehicle emissions or legal compliance. Always ensure proper installation and follow manufacturer instructions for optimal performance.
