ACT Alignment Tool

2007 Ford Mustang / Mercury Cougar / Mercury Montego / Ford Torino / Ford Galaxie 1963–1970

Part #: ATF048

Overview

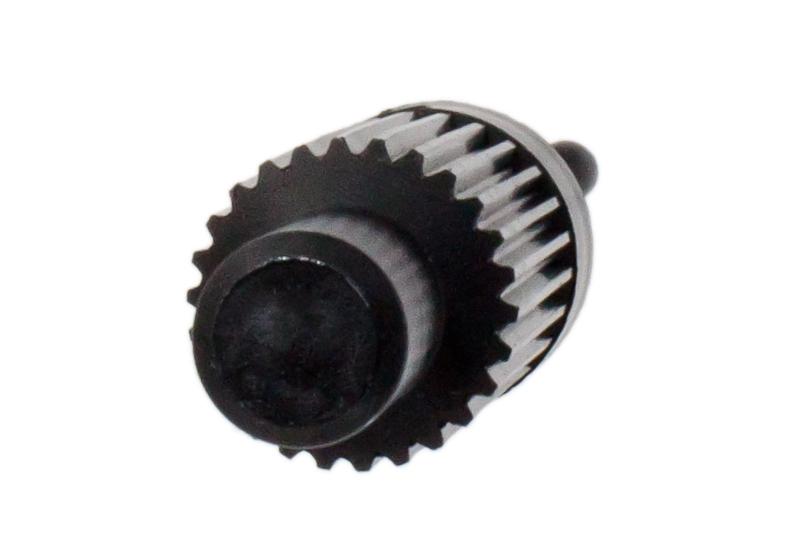

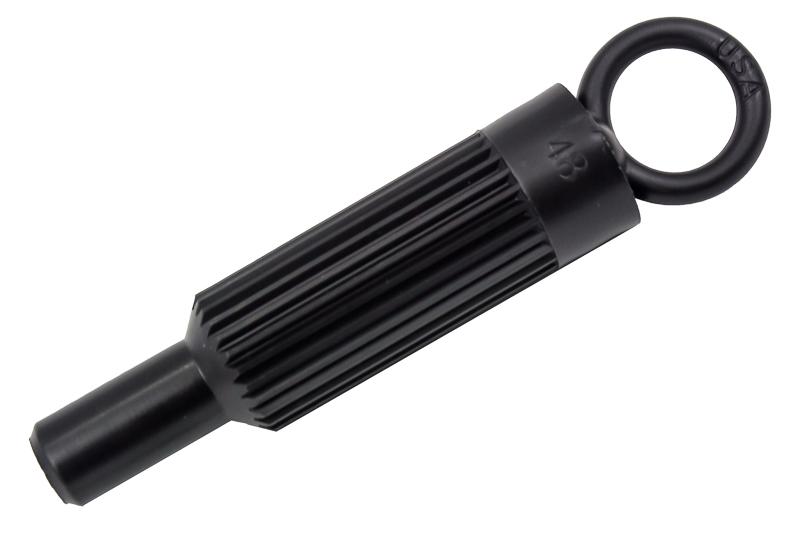

The ACT Alignment Tool ATF048 is an essential accessory designed to simplify the installation of ACT pressure plates and clutch assemblies. Specifically engineered for enthusiasts working on Ford Mustang models from 1967 to 2010, as well as various Mercury models including the Mercury Cougar and Montego, this tool ensures precise alignment of the clutch disc with the pilot bearing during assembly. Proper alignment is critical for smooth operation, ease of installation, and long-term reliability of your clutch system.

If you're a DIY mechanic, a professional technician, or a performance shop specializing in classic and modern Ford and Mercury vehicles, this alignment tool will save you time and frustration. Its straightforward design allows for quick setup, ensuring that the clutch disc is perfectly centered on the input shaft, which is vital for proper engagement and longevity of your clutch components.

Key Features

The ACT Alignment Tool ATF048 offers several features that make it a must-have for clutch installation projects:

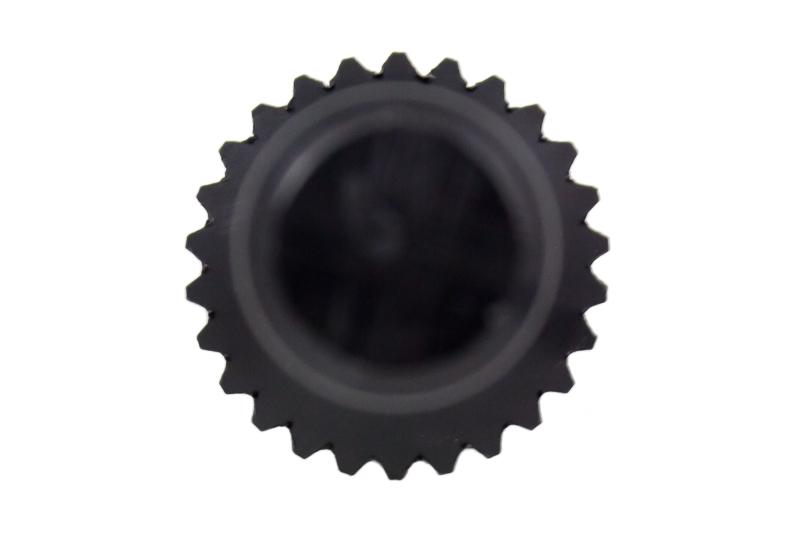

• Precision Fit: Designed to match the spline diameter of 1.125 inches and a spline count of 26, ensuring a snug and accurate fit on the input shaft of your transmission.
• Durable Construction: Made from high-quality materials that withstand repeated use, providing reliable performance during multiple installations.
• Lightweight Design: Weighing only 0.1 lbs., this tool is easy to handle and store, making it convenient for both shop use and personal projects.
• Compatibility: Suitable for a wide range of vehicles, including classic and late-model Ford Mustangs, Mercury Cougars, Montegos, and Ford Galaxies from 1963 to 1970.
• Ease of Use: Simple to insert and remove, allowing for quick setup and removal without damaging the clutch components or transmission input shaft.
• Time-Saving: Helps ensure correct alignment on the first attempt, reducing installation time and minimizing the risk of misalignment-related issues.

Construction & Design

The ACT Alignment Tool ATF048 is crafted from durable, high-strength materials designed to withstand the rigors of professional and DIY use. Its precise dimensions ensure a perfect fit for the specified spline count and diameter, facilitating effortless installation. The compact and lightweight design allows for easy handling and storage, making it an ideal addition to any automotive workshop or personal garage. The tool's simple yet robust construction ensures consistent performance, helping you achieve accurate clutch alignment every time.

Installation & Fitment

This alignment tool is a straightforward, bolt-on accessory that requires no additional modifications or special tools for use. To install, simply insert the tool into the clutch disc, align it with the input shaft of the transmission, and proceed with mounting the pressure plate. Its precise fit ensures that the clutch disc remains perfectly centered during assembly, which is crucial for smooth operation and longevity. No cutting, drilling, or tuning is required, making the process quick and hassle-free.

• Insert the alignment tool into the clutch disc hub.
• Align the tool with the transmission input shaft.
• Mount the pressure plate over the clutch disc and secure it.
• Remove the tool once the pressure plate is securely installed.

What's Included

• ACT Alignment Tool ATF048

Ideal For

• DIY enthusiasts working on classic Ford and Mercury vehicles
• Professional automotive technicians performing clutch replacements
• Performance shops specializing in Ford Mustang and Mercury models
• Restoration projects requiring precise clutch alignment
