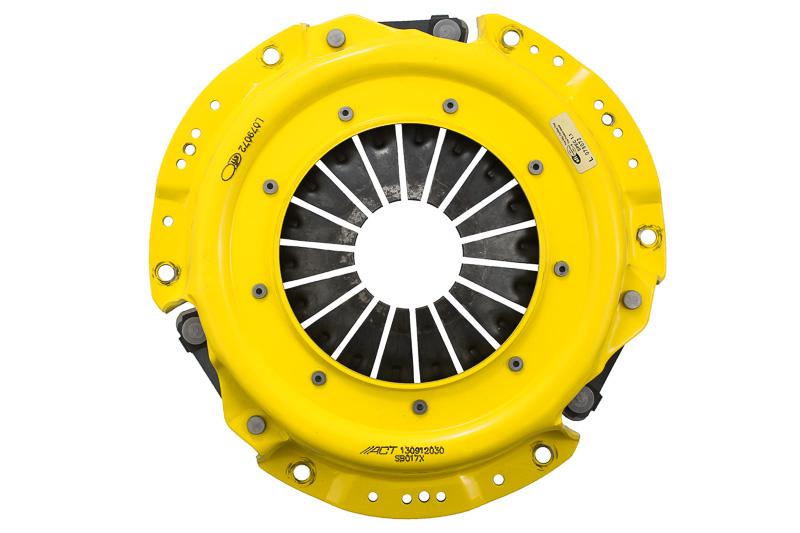

ACT Extreme Clutch Pressure Plate | 2013-2020 Subaru BRZ / Toyota 86 / Scion FR-S (SB017X)

2013-2020 Subaru BRZ / Toyota 86 / Scion FR-S ACT Extreme Clutch Pressure Plate

SB017X is an ACT Xtreme pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc.

Features

• Part Fitment Requirement: Must be used with ACT flywheel and disc. Pressure plate bolts included (M8-1.25 x 16mm).
• Product Weight (lbs.): 10.9
• SFI: 1.1
• Type: Xtreme
• Diameter (in.): 8.8
• Diameter (mm): 225

Applications

• 2013-2016 Scion FR-S
• 2017-2019 Toyota 86
• 2013-2019 Subaru BRZ

What's In The Box?

• ACT P/PL Xtreme Pressure Plate

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
