ACT Extreme Performance Street Sprung Clutch Kit | 2013-2020 Subaru BRZ / Toyota 86 / Scion FR-S (SB7-XTSS)

2013-2020 Subaru BRZ / Toyota 86 / Scion FR-S ACT Extreme Performance Street Sprung Clutch Kit

SB7-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features

• Torque Capacity Over OE: 1.08
• Flywheel Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter (in.): 1
• Alignment Tool Included: Yes
• Part Fitment Requirement: Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit).
• Product Weight (lbs.): 26.2
• Torque Capacity (ft/lbs.): 351

Applications

• 2013-2016 Scion FR-S
• 2013-2020 Subaru BRZ
• 2017-2020 Toyota 86

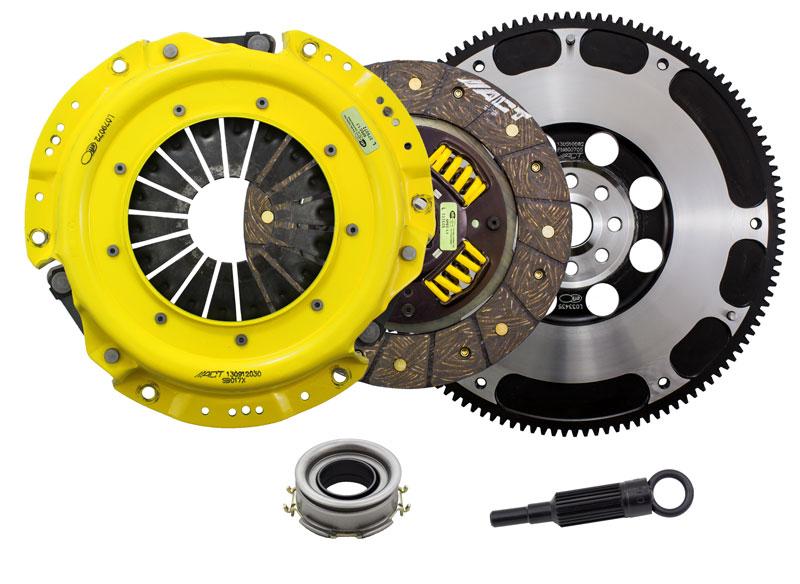

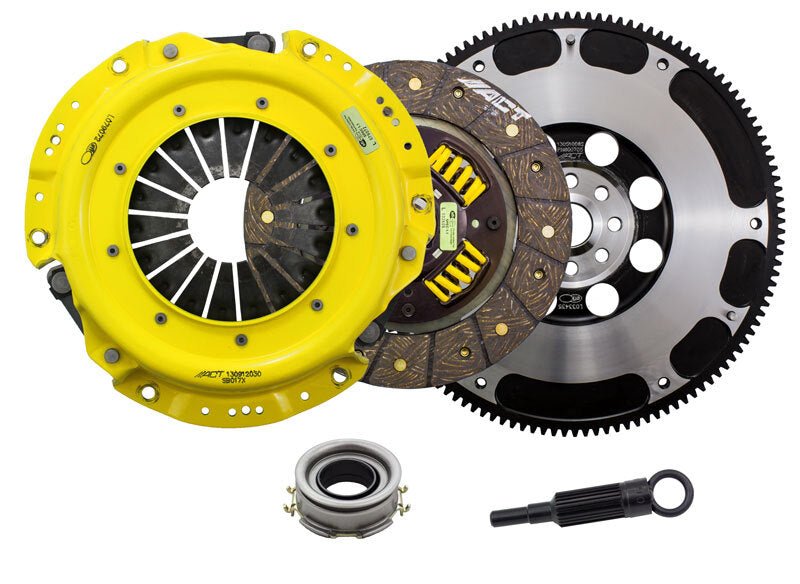

What's In The Box?

• Clutch Friction Disc (3000504)
• Clutch Flywheel (600705)
• Clutch Alignment Tool (AT90)
• Clutch Pilot Bearing (PB1004)
• Clutch Release Bearing (RB004)
• Clutch Pressure Plate (SB017X)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
