ACT Heavy Duty Performance Street Sprung Clutch Kit | Mazda RX-7 (93-95) (ZX6-HDSS)

ACT Heavy Duty Performance Street Sprung Clutch Kit | Mazda RX-7 (93-95) (ZX6-HDSS)

ZX6-HDSS

In stock

$838.00 USD
$1,035.00 USD $838.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Performance Street Sprung Clutch Kit for the Mazda RX-7 (93-95) is a high-performance clutch assembly designed for street-driven applications requiring increased durability and reliable engagement. This kit features ACT's most popular heavy-duty pressure plate, which utilizes an exclusive diaphragm design to enhance clamp load, minimize deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure superior performance and longevity, while precision cover stampings provide added rigidity and consistency. The included street disc is engineered for smooth engagement and dependable power transfer, making it suitable for spirited driving and daily use.

Designed specifically for 1993 to 1995 Mazda RX-7 models, this clutch kit is a direct replacement upgrade for stock components. It is compatible with vehicles equipped with the 13B rotary engine and is ideal for street, performance, and moderate track use. The kit is a bolt-on installation, requiring no additional modifications, and includes all necessary components for a complete clutch replacement. This performance clutch kit delivers increased clamping force and durability, ensuring reliable operation under demanding driving conditions while maintaining smooth pedal feel and drivability.

Overview

ACT HD-M/Perf Street Sprung Kit

ZX6-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Features

  • Product Weight (lbs.): 16.8
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 0.42
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Organic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1993-1995 Mazda RX-7

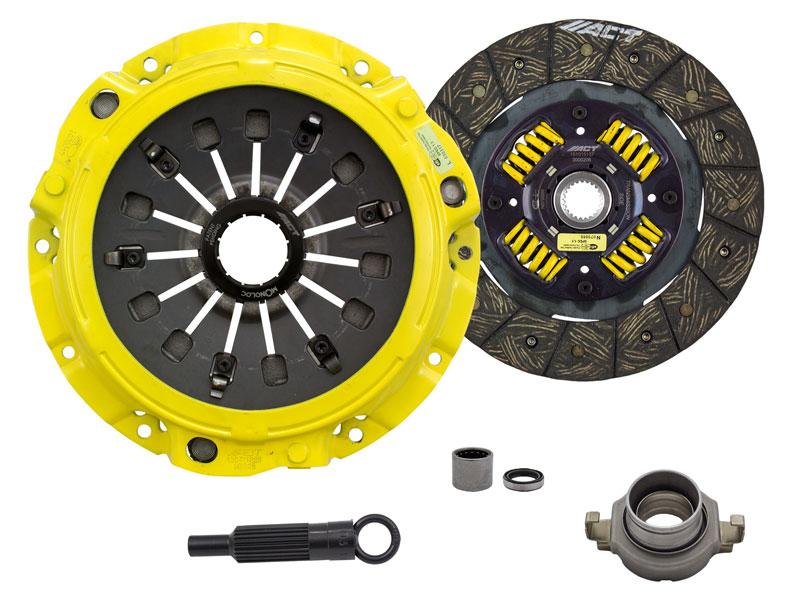

What's In The Box?

  • Clutch Friction Disc (3000206)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ028)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB600)

References

Warranty

  • Manufacturer 1 Year Warranty
