ACT Heavy Duty Off-Road Race Rigid 4 Pad Clutch Kit | Toyota Tacoma (95-04) (TA1-HDR4)

ACT Heavy Duty Off-Road Race Rigid 4 Pad Clutch Kit | Toyota Tacoma (95-04) (TA1-HDR4)

TA1-HDR4

Out of stock

$524.00 USD
$647.00 USD $524.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Off-Road Race Rigid 4 Pad Clutch Kit for Toyota Tacoma (95-04) is a high-performance clutch assembly designed for demanding off-road applications. This kit features ACT’s renowned heavy-duty pressure plate combined with a rigid four-pad race disc, providing exceptional torque capacity and aggressive engagement characteristics. The pressure plate’s design incorporates ACT’s exclusive diaphragm system, which enhances clamp load, minimizes deflection, and extends clutch lifespan. All diaphragms undergo a rigorous four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The precision stampings on the pressure plate cover add rigidity, contributing to reliable power transfer and increased toughness for off-road racing environments.

This clutch kit is specifically engineered for 1995 to 2004 Toyota Tacoma models, making it an ideal upgrade for off-road enthusiasts and racers seeking maximum durability and performance. It is a direct replacement for stock components, designed to withstand high torque loads and aggressive driving styles. Installation involves replacing the existing clutch with this heavy-duty assembly, offering a straightforward upgrade for off-road, racing, or high-performance street use. The kit includes the pressure plate and race disc, with no additional components required. Suitable for off-road racing, trail riding, and high-torque applications, this clutch kit ensures reliable engagement and long-lasting performance in challenging conditions.

Overview

ACT HD-O/Race Rigid 4 Pad Kit

TA1-HDR4 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 4 pad race disc delivering high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s rigid center 4 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.

Features

  • Product Weight (lbs.): 15.5
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 0.69
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1995-2004 Toyota Tacoma

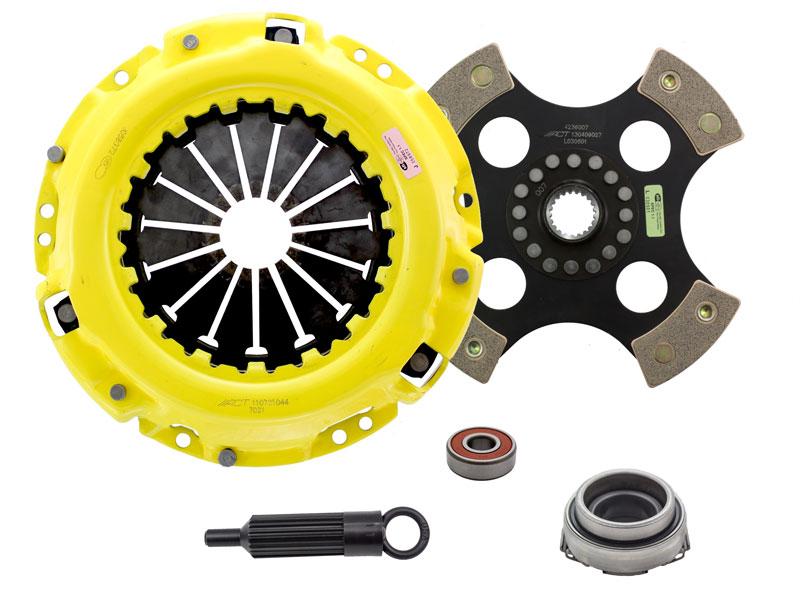

What's In The Box?

  • Clutch Friction Disc (4236007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB444)
  • Clutch Pressure Plate (T021)

References

Warranty

  • Manufacturer 1 Year Warranty
