ACT Heavy Duty Off-Road Race Rigid 4 Pad Clutch Kit | Toyota 4Runner (93) (T42-HDR4)

ACT Heavy Duty Off-Road Race Rigid 4 Pad Clutch Kit | Toyota 4Runner (93) (T42-HDR4)

T42-HDR4

In stock

$538.00 USD
$538.00 USD $538.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Off-Road Race Rigid 4 Pad Clutch Kit for the Toyota 4Runner (93) is a high-performance clutch assembly designed for demanding off-road applications. This kit features ACT’s renowned Heavy Duty pressure plate combined with a rigid 4 pad race disc, providing exceptional torque capacity and aggressive engagement. The pressure plate’s exclusive diaphragm design enhances clamp load, minimizes deflection, and extends clutch lifespan. All diaphragms undergo a rigorous four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The precision pressure plate cover stampings add rigidity, making this clutch suitable for intense off-road racing and heavy-duty use.

This clutch kit is specifically engineered for the 1993 Toyota 4Runner, offering a direct replacement for stock components. It is ideal for off-road enthusiasts and racers seeking increased toughness, high torque handling, and reliable engagement during aggressive driving. The kit is designed for bolt-on installation, providing a straightforward upgrade for vehicles subjected to high-stress environments. Suitable for off-road racing, trail driving, or heavy-duty use, this clutch assembly ensures maximum performance and durability in challenging conditions.

Overview

ACT HD-O/Race Rigid 4 Pad Kit

T42-HDR4 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 4 pad race disc delivering high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s rigid center 4 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.

Features

  • Product Weight (lbs.): 13.4
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1989-1995 Toyota Pickup
  • 1989-1993 Toyota 4Runner

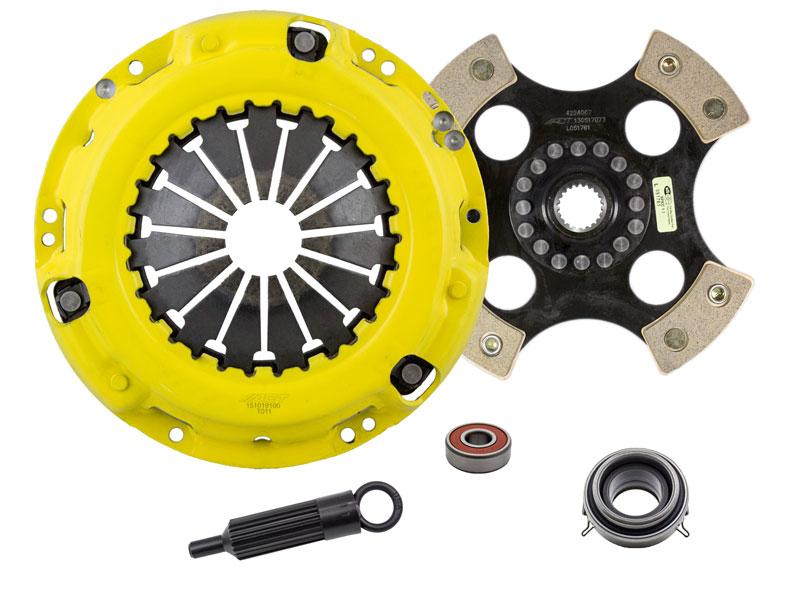

What's In The Box?

  • Clutch Friction Disc (4224007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB445)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
