• ACT Heavy Duty Off-Road Race Rigid 6 Pad Clutch Kit | Jeep Wrangler (1993) (JP1-HDR6)
1 1

ACT Heavy Duty Off-Road Race Rigid 6 Pad Clutch Kit | Jeep Wrangler (1993) (JP1-HDR6)

ACT Heavy Duty Off-Road Race Rigid 6 Pad Clutch Kit | Jeep Wrangler (1993) (JP1-HDR6)

JP1-HDR6

Out of stock

$486.00 USD
$600.00 USD $486.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

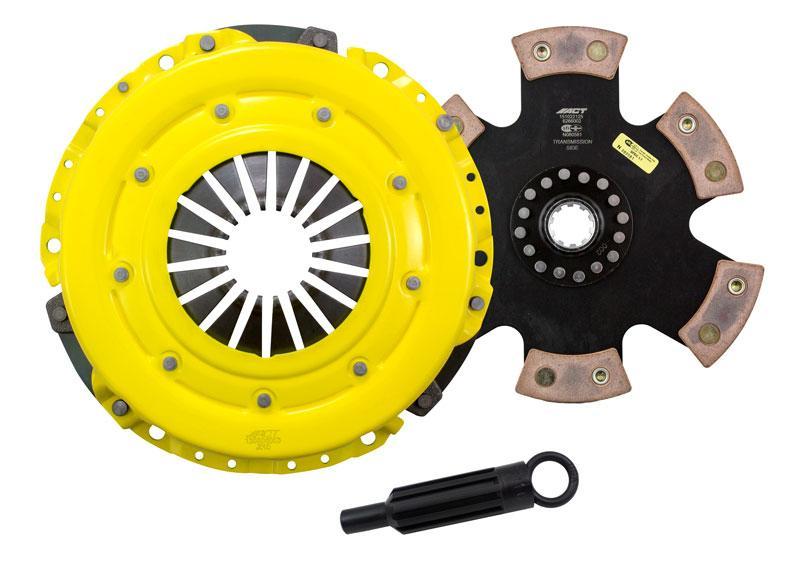

The ACT Heavy Duty Off-Road Race Rigid 6 Pad Clutch Kit is a high-performance clutch system designed for demanding off-road applications. This kit features ACT's renowned Heavy Duty pressure plate combined with a rigid 6 pad race disc, providing exceptional torque capacity and aggressive engagement suited for off-road racing environments. The pressure plate employs ACT’s exclusive diaphragm design, which increases clamp load, reduces deflection, and enhances overall durability. All diaphragms undergo a four-stage heat-treating process, ensuring unparalleled strength and longevity under extreme conditions. Constructed with precision stampings, the clutch components are engineered for maximum performance and reliability, making it an ideal upgrade for intense off-road use.

This clutch kit is specifically designed for the 1993 Jeep Wrangler, offering a direct replacement that can handle high torque loads and aggressive driving styles. It is suitable for off-road racing, trail riding, and other demanding off-road activities where durability and performance are critical. Installation involves replacing the stock clutch with this heavy-duty assembly, providing a robust upgrade for vehicles subjected to extreme stress. The kit includes the heavy-duty pressure plate and rigid 6 pad race disc, ensuring a comprehensive solution for off-road enthusiasts seeking increased toughness and engagement.

Overview

HD-O/Race Rigid 6 Pad Clutch Kit by ACT

JP1-HDR6 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 6 pad race disc delivering high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance.

ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s rigid center 6 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.

Features

  • Product Weight (lbs.): 19.5
  • Torque Capacity (ft/lbs.): 680
  • Torque Capacity Over OE: 76%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 10.5
  • Clutch Disc Diameter (Millimeters): 266
  • Input Shaft Diameter (inches): 1.125
  • Pressure Plate Type: Heavy Duty

Benefits

  • Light to moderate pedal effort
  • Aggressive engagement
  • Confidence during hard shifts
  • Increased gear rattle
  • Moderate friction life
  • Rigid design may increase spline wear
  • Uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1966-1975 Jeep CJ6
  • 1965-1983 Jeep CJ5
  • 1966-1968 Jeep CJ5A
  • 1987-1992 Jeep Comanche
  • 1987-2006 Jeep Wrangler
  • 1976-1986 Jeep CJ7
  • 1966-1966 Jeep CJ3
  • 1993-1994 Jeep Grand Cherokee
  • 1987-2001 Jeep Cherokee
  • 1966-1968 Jeep CJ6A

What's In The Box?

  • 1 - ACT HD-O/Race Rigid 6 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
