• ACT Heavy Duty Off-Road Race Sprung 6 Pad Clutch Kit | Toyota Tacoma (95) (TA1-HDG6)
1 1

ACT Heavy Duty Off-Road Race Sprung 6 Pad Clutch Kit | Toyota Tacoma (95) (TA1-HDG6)

ACT Heavy Duty Off-Road Race Sprung 6 Pad Clutch Kit | Toyota Tacoma (95) (TA1-HDG6)

TA1-HDG6

Out of stock

$601.00 USD
$742.00 USD $601.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Off-Road Race Sprung 6 Pad Clutch Kit for Toyota Tacoma (95) is a high-performance clutch assembly designed for demanding off-road racing applications. This kit includes ACT's renowned Heavy Duty pressure plate combined with a spring-center 6 pad race disc, delivering exceptional torque capacity and aggressive engagement. Engineered for durability and quiet operation, it enhances the vehicle's ability to withstand the rigors of off-road environments. The diaphragm design increases clamp load, reduces deflection, and maximizes clutch longevity, while all diaphragms undergo a four-stage heat-treating process for superior performance. Constructed with precision components, this clutch kit ensures reliable power transfer and increased toughness for extreme conditions.

Designed specifically for the 1995 Toyota Tacoma, this clutch kit is a direct replacement for stock components, providing an upgrade for off-road enthusiasts and racing applications. It is suitable for vehicles subjected to high torque loads and aggressive driving styles, offering improved durability and engagement characteristics. The kit is intended for off-road racing, heavy-duty use, and performance upgrades, ensuring optimal performance in demanding environments. Installation involves replacing the existing clutch assembly with this bolt-on kit, which includes all necessary components for a straightforward upgrade. Compatible with models equipped with appropriate engine configurations, this clutch kit enhances off-road capability and overall drivetrain resilience.

Overview

ACT HD-O/Race Sprung 6 Pad Kit

TA1-HDG6 kit features ACT's highly regarded Heavy Duty pressure plate and spring-center 6 pad race disc delivering high torque capacity, aggressive engagement, quiet operation and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s spring center 6 pad race discs boast quality parts throughout, with robust spring center sections to absorb driveline shock and premium ceramic friction materials to hold power even under the most abusive conditions.

Features

  • Product Weight (lbs.): 17.4
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 0.69
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1995-2004 Toyota Tacoma
  • 2004-2004 Toyota Tundra

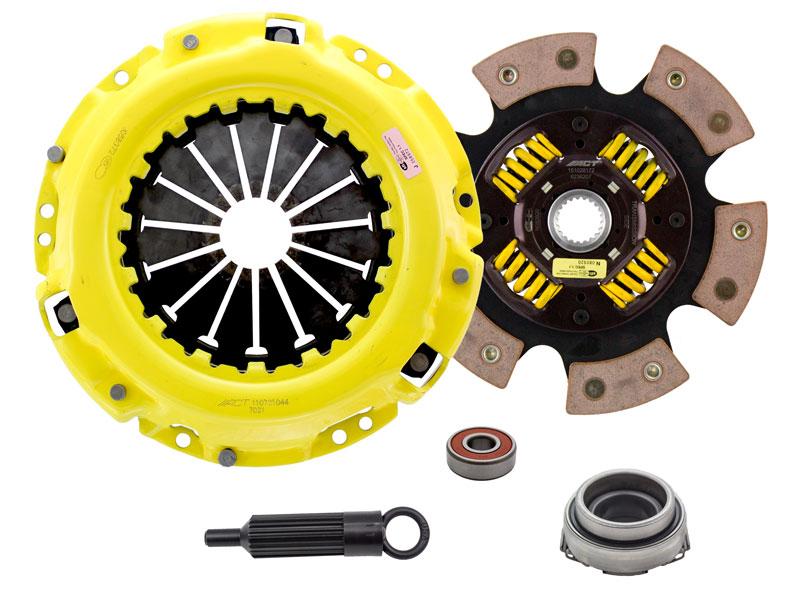

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB444)
  • Clutch Pressure Plate (T021)

References

Warranty

  • Manufacturer 1 Year Warranty
