ACT HD/Perf Street Sprung Kit | Multiple Fitments (NX1-HDSS)

ACT HD/Perf Street Sprung Kit

NX1-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Features

• Product Weight (lbs.): 14.6
• Torque Capacity (ft/lbs.): 275
• Torque Capacity Over OE: 0.54
• Pilot Bushing Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter (in.): 1
• Alignment Tool Included: Yes

Applications

• 1980-1983 Nissan 720
• 1975-1978 Nissan 280Z
• 1979-1983 Nissan 280ZX
• 1989-1998 Nissan 240SX
• 1990-1990 Nissan Axxess
• 1975-1979 Nissan 620
• 1980-1986 Nissan 720
• 1981-1984 Nissan Maxima

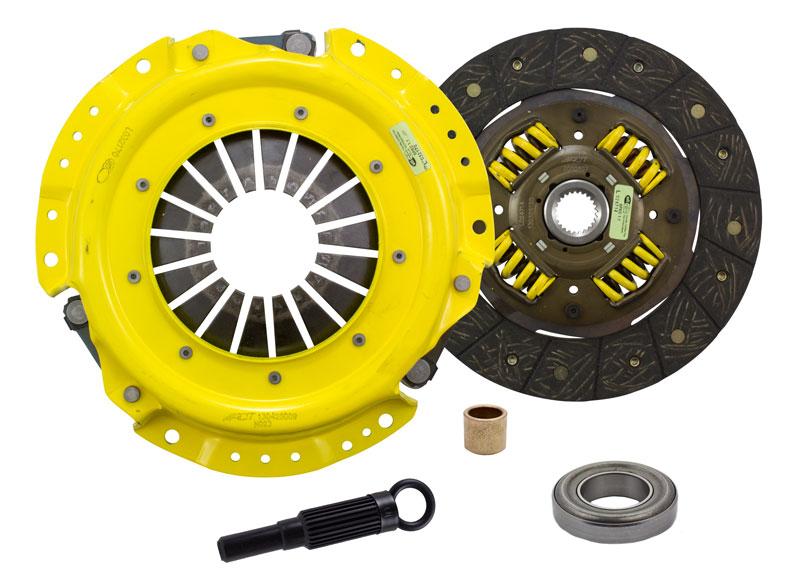

What's In The Box?

• Clutch Friction Disc (3000407)
• Clutch Alignment Tool (AT01)
• Clutch Pressure Plate (N023)
• Clutch Pilot Bushing (PB1012)
• Clutch Release Bearing (RB016)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
