ACT Heavy Duty Performance Street Sprung Clutch Kit | Nissan 200SX (96) (NX9-HDSS)

ACT Heavy Duty Performance Street Sprung Clutch Kit | Nissan 200SX (96) (NX9-HDSS)

NX9-HDSS

In stock

$465.00 USD
$574.00 USD $465.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Performance Street Sprung Clutch Kit for the Nissan 200SX (96) features a high-performance assembly designed to enhance street driving and moderate performance applications. This kit includes ACT's most popular heavy-duty pressure plate and street disc, engineered to deliver increased clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The organic performance street disc provides smooth engagement and reliable power transfer, making it suitable for daily driving and spirited street use. Constructed with precision stampings and high-quality materials, this clutch kit offers a balance of strength, reliability, and drivability.

Designed specifically for the 1996 Nissan 200SX (NX chassis code), this clutch kit is a direct replacement for stock components, providing an upgrade for improved handling of increased power or aggressive driving styles. It is compatible with stock or mildly modified engines and is ideal for street enthusiasts seeking a durable, high-performance clutch solution. Installation is straightforward as a bolt-on upgrade, with all necessary components included in the kit. This clutch setup is suitable for street use, offering enhanced grip and longevity without sacrificing daily drivability or smoothness.

Overview

ACT HD/Perf Street Sprung Kit

NX9-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Features

  • Product Weight (lbs.): 10.8
  • Torque Capacity (ft/lbs.): 240
  • Torque Capacity Over OE: 0.38
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Organic
  • Input Spline Quantity: 18
  • Input Shaft Diameter (in.): 0.8125
  • Alignment Tool Included: Yes

Applications

  • 1991-2002 Infiniti G20
  • 1995-1998 Nissan 200SX
  • 1991-1993 Nissan NX
  • 1991-2006 Nissan Sentra

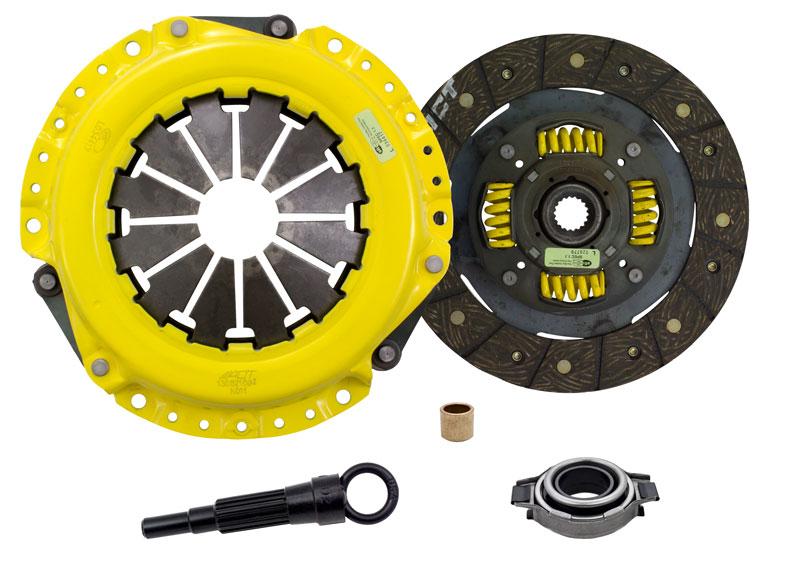

What's In The Box?

  • Clutch Friction Disc (3000410)
  • Clutch Alignment Tool (AT68)
  • Clutch Pressure Plate (N011)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB433)

References

Warranty

  • Manufacturer 1 Year Warranty
