| Year | Make | Model |
|---|---|---|
| 1984 - 1988 | Toyota | 4Runner DLX |
| 1984 - 1988 | Toyota | 4Runner SR5 |
| 1977 - 1985 | Toyota | Celica GT |
| 1983 - 1985 | Toyota | Celica GTS |
| 1977 - 1985 | Toyota | Celica ST |
| 1979 - 1981 | Toyota | Celica Supra |
| 1977 - 1978 | Toyota | Corona Custom |
| 1977 - 1981 | Toyota | Corona DLX |
| 1979 - 1981 | Toyota | Corona LE |
| 1977 | Toyota | Corona SR5 |
| 1978 - 1988 | Toyota | Pickup Base |
| 1979 - 1988 | Toyota | Pickup DLX |
| 1978 - 1988 | Toyota | Pickup SR5 |
| 1984 - 1988 | Toyota | Van Wagon Crg |
| 1984 - 1988 | Toyota | Van Wagon DX |
| 1984 - 1988 | Toyota | Van Wagon LE |
ACT Heavy Duty Performance Street Sprung Clutch Kit | Toyota 4Runner (87) (TC5-HDSS)
ACT Heavy Duty Performance Street Sprung Clutch Kit | Toyota 4Runner (87) (TC5-HDSS)
SKU:TC5-HDSS
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ACT Heavy Duty Performance Street Sprung Clutch Kit for Toyota 4Runner (87) is a high-performance clutch assembly designed to enhance durability and driving experience. This kit includes ACT's popular Heavy Duty pressure plate featuring an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure maximum performance and reliability, while the precision cover stampings provide added rigidity and consistency. The included street disc utilizes premium organic materials for smooth engagement and improved pedal feel, making it suitable for demanding street applications. Overall, this clutch kit offers a robust upgrade for drivers seeking increased performance and longevity from their clutch system.
Designed specifically for the 1987 Toyota 4Runner, this clutch kit is compatible with models equipped with the appropriate engine and transmission configurations. It serves as a direct replacement and performance upgrade for stock clutch components, ideal for street-driven vehicles that require enhanced holding capacity and durability. Installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included in the kit. This setup is well-suited for daily driving, spirited street use, and moderate off-road conditions, providing a reliable and consistent clutch engagement for demanding driving scenarios.
Share
Overview
Overview
ACT HD/Perf Street Sprung Kit
TC5-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
Features
- Product Weight (lbs.): 14.5
- Torque Capacity (ft/lbs.): 275
- Torque Capacity Over OE: 0.48
- Pilot Bushing Included: Yes
- Pressure Plate Type: Heavy Duty
- Release Bearing Included: Yes
- Clutch Disc Diameter (in.): 8.8
- Clutch Disc Diameter (mm): 224
- Disc Material: Organic
- Input Spline Quantity: 21
- Input Shaft Diameter (in.): 1.125
- Alignment Tool Included: Yes
Applications
- 1977-1981 Toyota Corona
- 1978-1988 Toyota Pickup
- 1986-1988 Toyota Van
- 1977-1985 Toyota Celica
- 1984-1988 Toyota 4Runner

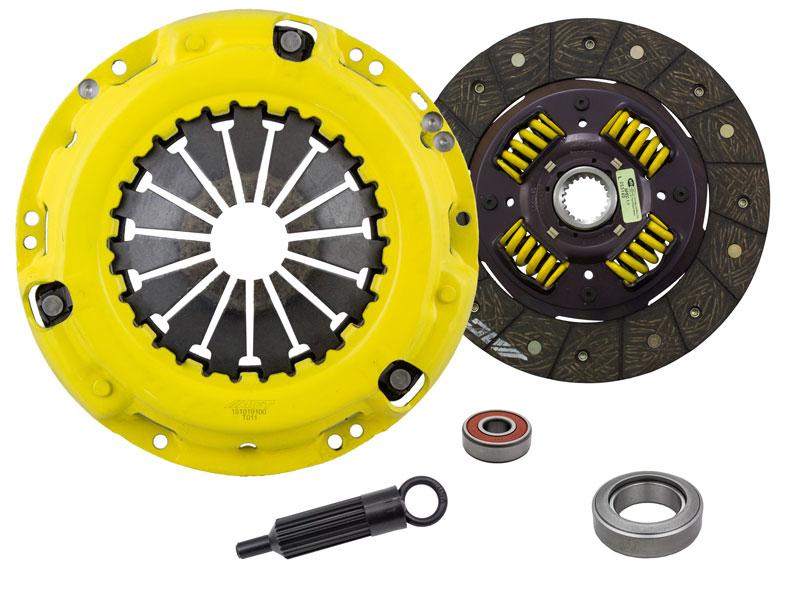

What's In The Box?
- Clutch Friction Disc (3000603)
- Clutch Alignment Tool (AT11)
- Clutch Pilot Bearing (PB1004)
- Clutch Release Bearing (RB201)
- Clutch Pressure Plate (T011)
References
Warranty
- Manufacturer 1 Year Warranty
