ACT HD Race 4 Pad Clutch Kit Honda Civic Type-R/Integra (17-24) (HC12-HDG4)

ACT HD Race 4 Pad Clutch Kit Honda Civic Type-R/Integra (17-24) (HC12-HDG4)

HC12-HDG4

Out of stock

$1,299.00 USD
$1,604.00 USD $1,299.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT HD Race 4 Pad Clutch Kit for Honda Civic Type R and Integra (17-24) is a high-performance clutch upgrade designed for serious driving enthusiasts and those seeking enhanced power handling. This advanced sprung clutch kit features ACT's proven technology, offering increased torque capacity and improved durability over stock components. Built with high-quality materials, the kit provides reliable engagement and smooth operation under demanding conditions, making it ideal for street, track, or spirited driving. Its design ensures consistent performance and resistance to heat and wear, supporting the vehicle's increased power output and performance modifications.

Compatible with 2017 to 2024 Honda Civic Type R and Integra models, this clutch kit is a direct replacement for OEM components, ensuring straightforward installation. It is engineered to handle higher horsepower and torque levels, making it suitable for heavily modified engines or aggressive driving styles. The kit includes the clutch disc, pressure plate, and release bearing, providing a complete upgrade solution. Designed for bolt-on installation, it offers a reliable upgrade for enthusiasts looking to improve clutch response, durability, and overall driving experience on both street and track applications.

Overview

Advanced Clutch HD Race Sprung Clutch Kit - HC12-HDG4

The 10th Generation Civic Type R is the ultimate Honda-lovers goal. Already responsive and powerful as delivered, this latest platform is being explored for serious transformations in power output. As those improvements surpass the capabilities of the OE clutch components, ACT is again stepping up to provide the latest clutch developments - just as Honda drivers have counted on for over two decades.

HC12-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Please Note: Must use ACT flywheel (included in kit). Flywheel bolts included (M12-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).

Features

  • Torque Capacity (ft/lbs.) 527
  • Torque Capacity Over OE 71%
  • Disc Material Ceramic
  • Friction Surface Diameter (Inches) 9.4
  • Friction Surface Diameter (mm) 240
  • Input Shaft Diameter (Inches) 1.0325
  • Spline Count 24
  • Disc Type Sprung Race Disc
  • Pressure Plate Type Heavy Duty
  • Flywheel Type Streetlite
  • Flywheel Tooth Quantity 149
  • Flywheel Mounting Hole Quantity 8

Benefits

  • Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 2017-2024 Honda Civic Type-R
  • 2024 Acura Integra Type-S

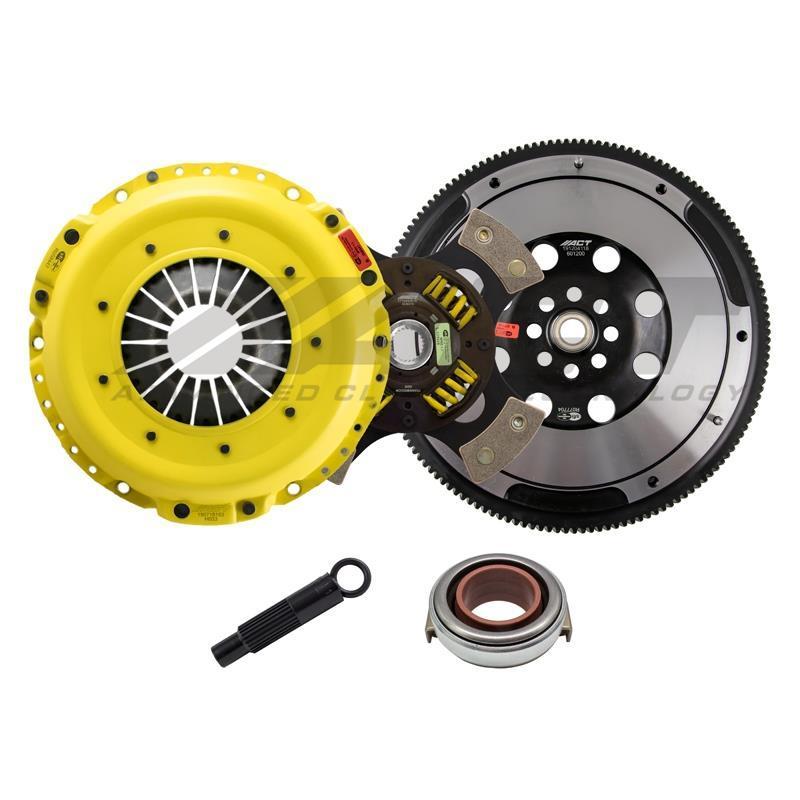

What's In The Box?

  • 4 Pad Sprung Race Disc - 4240210
  • P/PL Heavy Duty Pressure Plate - H033
  • XACT Flywheel Streetlite 601200
  • Release Bearing - RB313
  • Alignment Tool - AT61

References

Warranty

  • 12 Month Manufacturer Warranty
