ACT HD Race Rigid 6-Pad Clutch Kit | Honda Civic Type-R 17-24 / Acura Integra Type-S (HC12-HDR6)

ACT HD Race Rigid 6-Pad Clutch Kit | Honda Civic Type-R 17-24 / Acura Integra Type-S (HC12-HDR6)

HC12-HDR6

Out of stock

$1,277.00 USD
$1,577.00 USD $1,277.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT HD Race Rigid 6-Pad Clutch Kit for the Honda Civic Type R (2017-2024) and Acura Integra Type-S is a high-performance clutch solution designed for serious driving enthusiasts and motorsport applications. This advanced clutch kit features ACT's most popular heavy-duty race components, including a rigid pressure plate and six high-friction clutch pads, engineered to handle increased power outputs and aggressive driving styles. Constructed with durable materials to withstand extreme heat and stress, the kit provides reliable engagement and improved torque capacity. Its design ensures a firm, responsive pedal feel, making it ideal for track days, street performance, and custom builds where maximum clutch performance is required. The kit enhances the vehicle's ability to transfer power efficiently while maintaining durability under demanding conditions.

Designed specifically for 10th Generation Honda Civic Type R models from 2017 to 2024 and compatible with Acura Integra Type-S, this clutch kit is a direct replacement for stock components. It is suitable for vehicles that have undergone modifications to increase horsepower and torque, requiring a more robust clutch solution. The installation is a bolt-on process, intended for experienced technicians or enthusiasts familiar with clutch replacement procedures. The kit includes the pressure plate, clutch pads, and necessary hardware for a complete upgrade. It is optimized for high-performance driving, whether on the street or the track, providing improved power transfer, quicker engagement, and enhanced durability for demanding applications.

Overview

Advanced Clutch HD Race Rigid Clutch Kit - HC12-HDR6

The 10th Generation Civic Type R is the ultimate Honda-lovers goal. Already responsive and powerful as delivered, this latest platform is being explored for serious transformations in power output. As those improvements surpass the capabilities of the OE clutch components, ACT is again stepping up to provide the latest clutch developments - just as Honda drivers have counted on for over two decades.

HC12-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Please Note: Must use ACT flywheel (included in kit). Flywheel bolts included (M12-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).

Features

  • Torque Capacity (ft/lbs.) 527
  • Torque Capacity Over OE 71%
  • Disc Material Ceramic
  • Friction Surface Diameter (Inches) 9.4
  • Friction Surface Diameter (mm) 240
  • Input Shaft Diameter (Inches) 1.0325
  • Spline Count 24
  • Disc Type Rigid Race Disc
  • Pressure Plate Type Heavy Duty
  • Flywheel Type Streetlite
  • Flywheel Tooth Quantity 149
  • Flywheel Mounting Hole Quantity 8

Benefits

  • Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 2017-2024 Honda Civic Type-R
  • 2024 Acura Integra Type-S

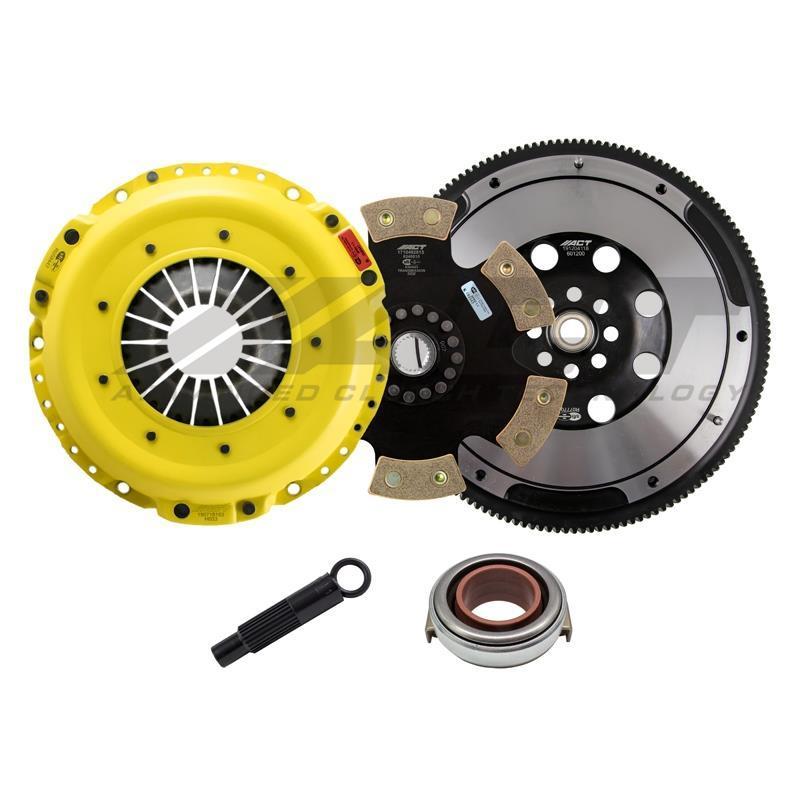

What's In The Box?

  • 6 Pad Rigid Race Disc - 6240010
  • P/PL Heavy Duty Pressure Plate - H033
  • XACT Flywheel Streetlite 601200
  • Release Bearing - RB313
  • Alignment Tool - AT61

References

Warranty

  • 12 Month Manufacturer Warranty
