ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Supra 3.0L Turbo (87-92) (TS2-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Supra 3.0L Turbo (87-92) (TS2-HDR4)

TS2-HDR4

Out of stock

$829.00 USD
$1,024.00 USD $829.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit is a high-performance upgrade designed for the 1987-1992 Toyota Supra 3.0L Turbo. This kit combines ACT's Heavy Duty pressure plate with a ceramic 4-pad rigid race disc, providing exceptional durability and consistent engagement. The pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. All diaphragms undergo a four-stage heat-treating process to ensure maximum performance under demanding conditions. The rigid race disc is engineered for aggressive driving, offering improved torque capacity and quick throttle response, making it ideal for racing or high-stress applications.

This clutch kit is specifically engineered for the Toyota Supra models equipped with the 3.0L Turbo engine from 1987 to 1992. It serves as a direct replacement for stock components, providing a reliable upgrade for street or track use. Installation involves replacing the existing clutch components with this bolt-on kit, which includes the pressure plate and ceramic race disc. Suitable for high-performance driving, the kit enhances power transfer and clutch durability under aggressive conditions. It is an excellent choice for enthusiasts seeking increased performance and longevity from their Supra's clutch system.

Overview

1987-1992 Toyota Supra 3.0L Turbo Heavy Duty Race Clutch Kit by ACT

This kit features ACT's Heavy Duty pressure plate paired with their ceramic 4-pad rigid race disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design; rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 570 ft/lbs
  • Torque Capacity (% Over OE): 88%

Applications

  • 1987 - 1992 Toyota Supra 3.0L Turbo

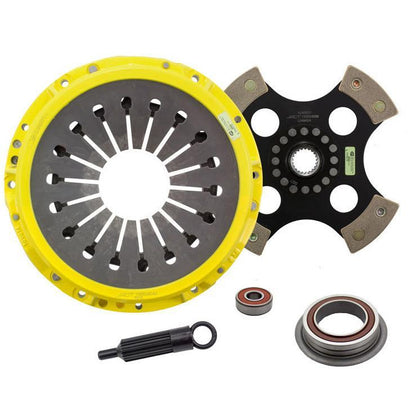

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - Rigid 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
