• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Honda Civic (92-05) / Del Sol (93-97) / Acura EL (97-05) (HC5-HDR4)
1 1

ACT HD Race Rigid 4-Pad Clutch Kit | Honda Civic/Del Sol/Acura EL (92-05) (HC5-HDR4)

ACT HD Race Rigid 4-Pad Clutch Kit | Honda Civic/Del Sol/Acura EL (92-05) (HC5-HDR4)

HC5-HDR4

In stock

$450.00 USD
$556.00 USD $450.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT HD Race Rigid 4-Pad Clutch Kit is a high-performance upgrade designed for Honda Civic, Del Sol, and Acura EL models from 1992 to 2005. This kit combines ACT's heavy-duty pressure plate with a ceramic 4-pad rigid race disc, offering exceptional durability and heat resistance for demanding driving conditions. The pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. All diaphragms undergo a four-stage heat-treating process, ensuring maximum performance and longevity. The kit's components are engineered for aggressive street and race applications, providing reliable engagement and consistent power transfer under high-stress conditions. Constructed with precision stampings, the pressure plate delivers rigidity and uniform pressure, making it an ideal choice for enthusiasts seeking a robust clutch solution.

This clutch kit is a direct replacement for stock components on 1992-2005 Honda Civic, Del Sol, and Acura EL models equipped with compatible transmissions. It is suitable for vehicles used in street, track, or autocross environments where increased clamping force and durability are required. Installation involves bolt-on replacement of the existing clutch assembly, with no modifications necessary. The kit includes the heavy-duty pressure plate and ceramic 4-pad rigid race disc, designed to handle higher torque loads and aggressive driving styles. Compatibility notes indicate optimal performance on stock or mildly modified engines, making it a popular choice for performance-oriented daily drivers and racers alike. Proper installation and break-in are recommended to maximize the clutch's lifespan and performance benefits.

Overview

92-05 Honda Civic / 93-97 Del Sol & 97-05 Acura EL Heavy Duty Race Clutch Kit by ACT

This kit features ACT's Heavy Duty pressure plate paired with their ceramic 4-pad rigid race disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design; rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 300 ft/lbs
  • Torque Capacity (% Over OE): 84%

Applications

  • 1992 - 2005 Honda Civic
  • 1992 - 1998 Honda Civic Si
  • 1993 - 1997 Honda Civic Del Sol
  • 1997 - 2005 Acura EL

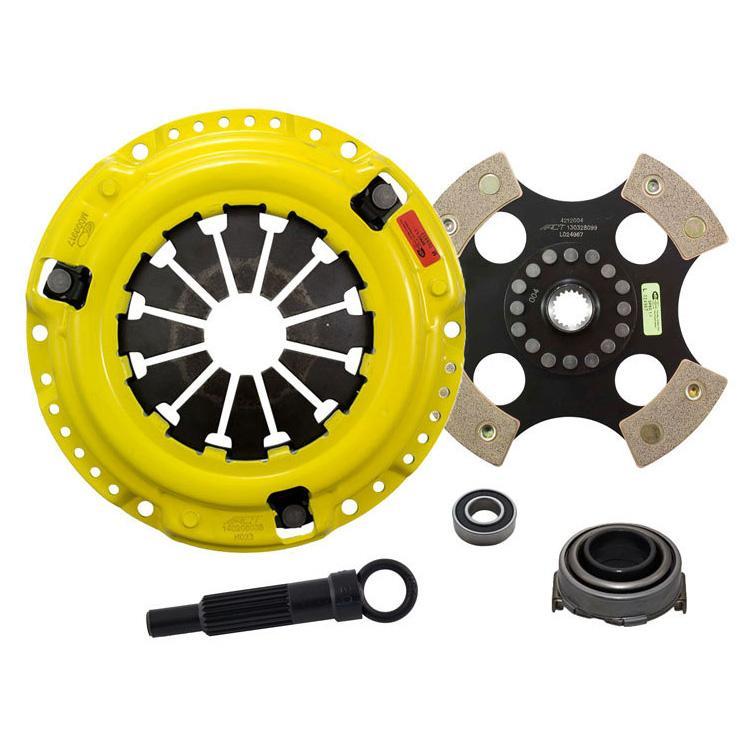

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - Rigid 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
