• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic 1.5T/Si (17-23) (HC10-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic 1.5T/Si (17-23) (HC10-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic 1.5T/Si (17-23) (HC10-HDG4)

HC10-HDG4

Out of stock

$1,235.00 USD
$1,525.00 USD $1,235.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit for Honda Civic 1.5T and Si models is a high-performance clutch upgrade designed to handle increased power and demanding driving conditions. This kit combines ACT's Heavy Duty pressure plate, featuring an exclusive diaphragm design that enhances clamp load, reduces deflection, and extends clutch life. The ceramic 4-pad sprung race disc provides excellent heat resistance and durability, making it suitable for spirited street driving or track use. Constructed with precision and quality materials, the pressure plate undergoes a four-stage heat treatment process to ensure maximum performance and longevity. This assembly delivers improved torque capacity, consistent engagement, and reliable operation under high-stress conditions.

Designed for 2017-2021 Honda Civic 1.5T / Si models and 2022+ Honda Civic 1.5T / Si variants, this clutch kit is a direct replacement for stock components. It is ideal for enthusiasts seeking increased performance, durability, and a more aggressive clutch feel for street or track applications. The kit is a bolt-on upgrade that requires no additional modifications for installation. It includes the pressure plate and ceramic race disc, providing a complete solution for upgrading your clutch system. Suitable for high-performance driving, this clutch kit enhances vehicle responsiveness and ensures reliable power transfer during aggressive driving or racing scenarios.

Overview

2017-2021 Honda Civic 1.5T / Si & 2022+ Honda Civic 1.5T / Si Heavy Duty Race Clutch Kit by ACT

This kit features ACT's Heavy Duty pressure plate paired with their ceramic 4-pad sprung race disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 464 ft/lbs
  • Torque Capacity (% Over OE): 109%

Please Note: Must use ACT flywheel (included in kit).

Applications

  • 2017-2021 Honda Civic 1.5T
  • 2017-2021 Honda Civic Si
  • 2022+ Honda Civic 1.5T
  • 2022+ Honda Civic Si

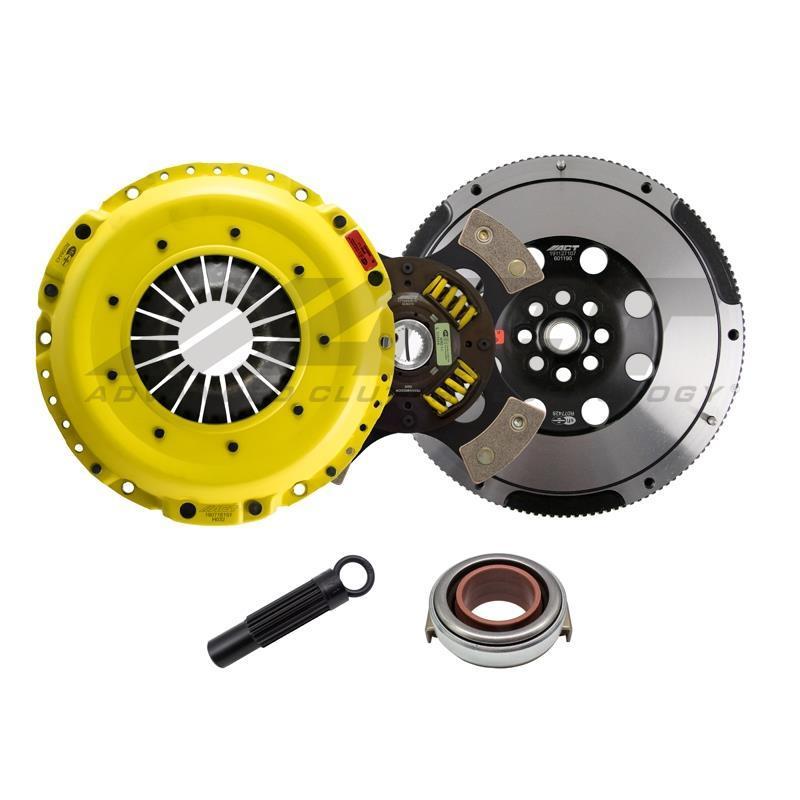

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - Sprung 4-Pad Race Disc
  • 1 - Streetlite Flywheel
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
