• ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic (92-05) / Del Sol (93-97) (HC5-HDG4)
1 1

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic (92-05) / Del Sol (93-97) (HC5-HDG4)

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit | Honda Civic (92-05) / Del Sol (93-97) (HC5-HDG4)

HC5-HDG4

In stock

$490.00 USD
$605.00 USD $490.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 4 Pad Clutch Kit is a high-performance upgrade designed for Honda Civic models from 1992 to 2005 and Del Sol models from 1993 to 1997. This kit combines ACT's Heavy Duty pressure plate with a ceramic 4-pad sprung race disc, providing increased clamp load and enhanced durability for demanding driving conditions. The pressure plate features an exclusive diaphragm design that reduces deflection and maximizes clutch life, while all diaphragms undergo a four-stage heat-treating process to ensure consistent performance. The kit's components are engineered with precision cover stampings to deliver rigidity and reliability, making it suitable for aggressive street or race applications.

Designed for 1992–2005 Honda Civic and 1993–1997 Del Sol models, this clutch kit is an ideal upgrade for enthusiasts seeking improved performance and longevity. It is compatible with stock or moderately modified engines and serves as a direct replacement for OEM clutch components. The kit is suitable for street, track, or spirited driving, offering a reliable and durable solution for high-stress use. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete clutch replacement, ensuring optimal engagement and smooth operation under demanding conditions.

Overview

92-05 Honda Civic / 93-97 Del Sol Heavy Duty Race Clutch Kit by ACT

This kit features ACT's Heavy Duty pressure plate paired with their ceramic 4-pad sprung race disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 300 ft/lbs
  • Torque Capacity (% Over OE): 84%

Applications

  • 1992 - 2005 Honda Civic
  • 1992 - 1995 Honda Civic Si
  • 2002 - 2005 Honda Civic Si
  • 1993 - 1997 Honda Civic Del Sol

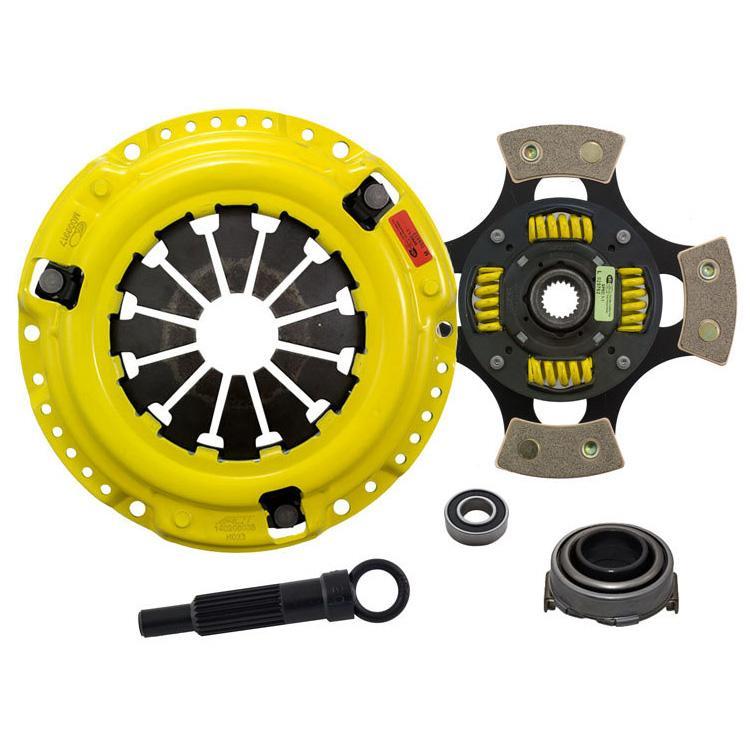

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - Sprung 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
