ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Supra / Lexus SC300 (88-97 / 92-97) (TS3-HDG6)

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit | Toyota Supra / Lexus SC300 (88-97 / 92-97) (TS3-HDG6)

TS3-HDG6

In stock

$601.00 USD
$742.00 USD $601.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Sprung 6 Pad Clutch Kit is a high-performance clutch assembly designed for the Toyota Supra and Lexus SC300 models from 1988 to 1997. This kit combines ACT's Heavy Duty pressure plate with a ceramic 6-pad sprung race disc, offering enhanced durability and engagement. The pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. All components undergo a four-stage heat-treating process to ensure maximum performance and reliability under demanding conditions. The precision cover stampings provide added rigidity and consistency, making this clutch suitable for aggressive driving and racing applications.

This clutch kit is compatible with 1988-1997 Toyota Supra and 1992-1997 Lexus SC300 models equipped with a 3.0L non-turbo engine. It serves as a direct replacement or upgrade for stock clutches, delivering improved holding capacity and pedal feel for street and track use. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included in the kit. Designed for high-performance driving, this clutch assembly is ideal for enthusiasts seeking increased torque capacity and durability in demanding driving environments.

Overview

1988-1997 Supra / 1992-1997 SC300 3.0L (Non-Turbo) Heavy Duty Race Clutch Kit by ACT

This kit features ACT's Heavy Duty pressure plate paired with their ceramic 6-pad sprung race disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 365 ft/lbs
  • Torque Capacity (% Over OE): 69%

Applications

  • 1988 - 1992 Toyota Supra 3.0L 7M-GE
  • 1993 - 1997 Toyota Supra 3.0L 2JZ-GE
  • 1992 - 1997 Lexus SC300 3.0L 2JZ-GE

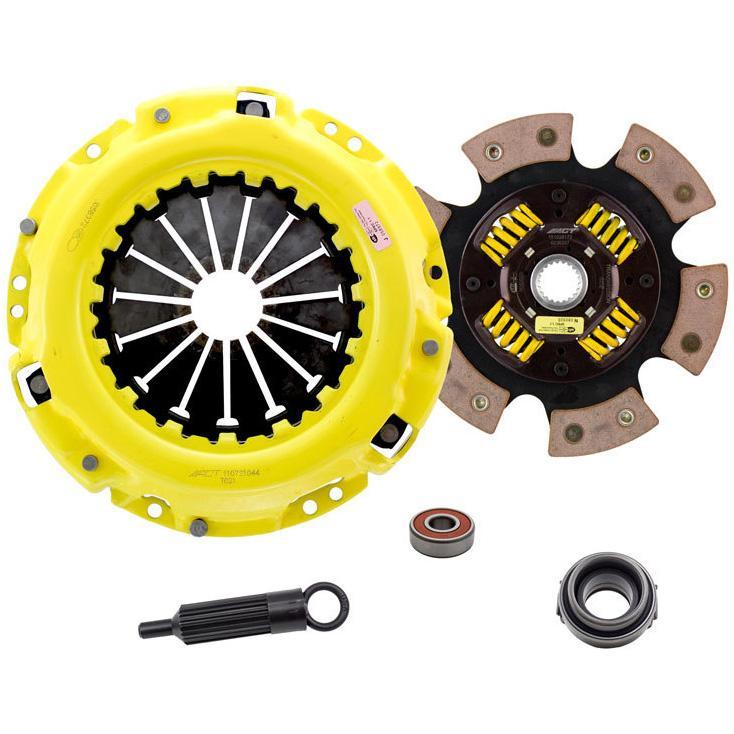

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - Sprung 6-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
