ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Suzuki Samurai (86-95) (SZ3-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Suzuki Samurai (86-95) (SZ3-HDR4)

SZ3-HDR4

In stock

$567.00 USD
$567.00 USD $567.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the Suzuki Samurai (1986-1995) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT’s most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance, while precision cover stampings provide added rigidity. The 4-pad rigid race discs are constructed with high-quality ceramic materials, offering excellent heat resistance and friction characteristics for aggressive driving and racing applications. Overall, this clutch kit delivers enhanced holding capacity, improved response, and increased longevity for off-road and performance use.

Designed specifically for 1986-1995 Suzuki Samurai models, this clutch kit is a direct replacement and upgrade for stock components. It is suitable for vehicles used in off-road, racing, or high-performance street driving, where increased clamping force and durability are required. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Compatibility is optimized for models with the original engine configuration, providing a reliable upgrade that enhances overall clutch performance. This clutch kit is ideal for enthusiasts seeking a robust, race-ready clutch solution that withstands high-stress conditions and delivers consistent power transfer.

Overview

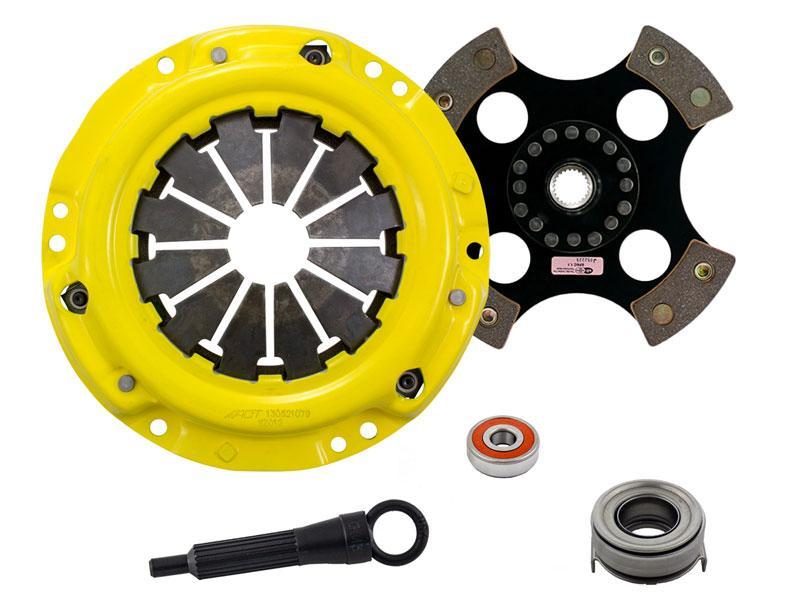

1986-1995 Suzuki Samurai HD/Race Rigid 4 Pad Clutch Kit by ACT

SZ3-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 8.4
  • Torque Capacity (ft/lbs.): 1263
  • Torque Capacity Over OE: 88%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 7.5
  • Clutch Disc Diameter (Millimeters): 190
  • Input Shaft Diameter (inches): 0.875
  • Pressure Plate Type: Heavy Duty

Benefits

  • Light to moderate pedal effort
  • Aggressive engagement
  • Increased gear rattle
  • Moderate friction life
  • Rigid design may increase spline wear
  • Uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1986-1995 Suzuki Samurai

What's In The Box?

  • 1 - ACT HD/Race Rigid 4 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
