| Year | Make | Model |
|---|---|---|
| 2006 - 2012 | Honda | Civic DX |
| 2006 - 2015 | Honda | Civic EX |
| 2009 - 2012 | Honda | Civic EX-L |
| 2006 - 2015 | Honda | Civic LX |
| 2009 - 2011 | Honda | Civic LX-S |
| 2015 | Honda | Civic SE |

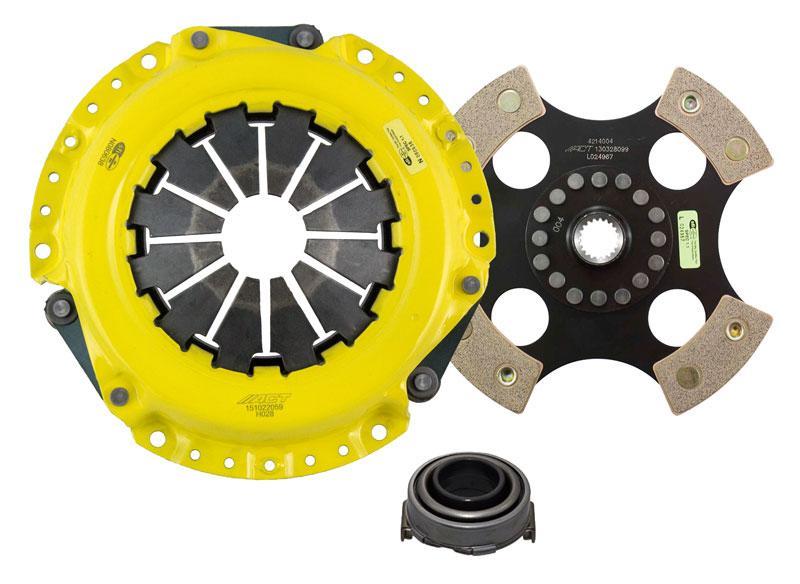

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Honda Civic (06-15) (HC9-HDR4)
ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Honda Civic (06-15) (HC9-HDR4)
SKU:HC9-HDR4
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for Honda Civic (2006-2015) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad rigid race disc constructed with high-quality ceramic friction materials and a chrome component for enhanced strength. This combination delivers improved torque capacity, reliable engagement, and increased heat resistance, making it suitable for racing or aggressive street driving.
Designed specifically for 2006-2015 Honda Civic models, this clutch kit is a direct replacement for stock components and offers a significant upgrade in performance and durability. It is compatible with various engine configurations within this model range and is ideal for track use, high-performance street applications, or heavy-duty driving scenarios. The kit is a bolt-on installation, providing a straightforward upgrade without the need for additional modifications. It includes all necessary components for installation, ensuring a secure fit and optimal operation. This clutch kit is engineered to handle increased power loads while maintaining smooth engagement and long service life.
Share
Overview
Overview
HD/Race Rigid 4 Pad Clutch Kit
HC9-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Features
- Torque Capacity (ft/lbs.): 305
- Torque Capacity Over OE: 71%
- Disc Type: Race Disc
- Spline Count: 20
- Spline Size (in.): 7/8
- Disc Diameter (in.): 8.4
- Disc Diameter (mm.): 214
- Pressure Plate Type: Heavy Duty
- Recommended for race use only
Applications
- 2006-2012 Honda Civic DX 1.8L
- 2006-2015 Honda Civic EX 1.8L
- 2009-2012 Honda Civic EX-L 1.8L
- 2006-2015 Honda Civic LX 1.8L
- 2010 Honda Civic LX-S 1.8L
What's In The Box?
- ACT 4214004
- ACT H028
- ACT RB820
Warranty
- One (1) Year from Retail Purchase
