• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Mazda MX-5 Miata ND (16-18) (ZM10-HDR4)
1 1

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Mazda MX-5 Miata ND (16-18) (ZM10-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Mazda MX-5 Miata ND (16-18) (ZM10-HDR4)

ZM10-HDR4

In stock

$960.00 USD
$1,185.00 USD $960.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the Mazda MX-5 Miata ND (2016-2018) is a high-performance clutch assembly designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate combined with a 4-pad, rigid race disc, delivering exceptional strength and durability. The pressure plate utilizes an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. All diaphragms undergo a four-stage heat-treating process to ensure maximum performance and reliability. The precision cover stampings on the pressure plate provide added rigidity and consistency, making this clutch suitable for aggressive street or track use. The race disc is engineered with high-quality materials to withstand high torque loads and intense heat, ensuring reliable power transfer.

This clutch kit is compatible with 2016-2018 Mazda MX-5 Miata ND models, specifically designed for vehicles with high-performance or racing applications. It is a direct bolt-on replacement for stock components, offering improved clamping force and durability without requiring modifications. Ideal for track days, spirited driving, or heavy-duty street use, this kit enhances overall clutch performance and longevity. The package includes the heavy-duty pressure plate and 4-pad rigid race disc, providing all necessary components for installation. Suitable for drivers seeking increased performance and reliability, this clutch kit is engineered to handle higher torque levels and aggressive driving styles.

Overview

Heavy Duty / Race 4-Pad Rigid Clutch Kit by ACT

ZM10-HDR4 kit features ACT's most popular Heavy Duty pressure plate and their 4-pad, rigid race disc.

CT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Feel - Light to moderate pedal effort, aggressive engagement, increased gear rattle
  • Life - Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use - Recommended for race use only
  • ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Please Note: 225mm upgrade. Must use ACT flywheel (included in kit).

Applications

  • 2016 - 2018 Mazda MX-5 Miata (ND)

Specifications

  • Torque Capacity (ft/lbs.): 399
  • Torque Capacity Over OE: 87%
  • Spline Count: 22
  • Spline Size (in.): 15/16
  • Disc Diameter (in/mm): 8.8/224
  • Product Weight (lbs.): 25.4

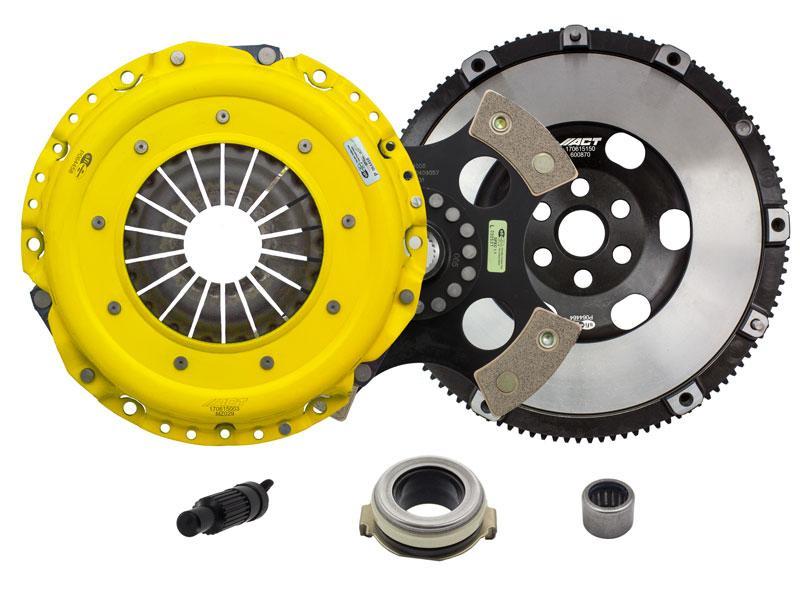

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - 4-Pad Rigid Race Disc
  • 1 - ACT Flywheel
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT 1 Year Limited Warranty
