• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Suzuki Esteem (95) (SZ1-HDR4)
1 1

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Suzuki Esteem (95) (SZ1-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Suzuki Esteem (95) (SZ1-HDR4)

SZ1-HDR4

Out of stock

$556.00 USD
$556.00 USD $556.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit is a high-performance clutch assembly designed for demanding racing and heavy-duty applications. It features ACT's most popular Heavy Duty pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit includes a 4-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built with precision cover stampings, this clutch offers enhanced rigidity and reliability, making it suitable for aggressive driving and racing scenarios.

This clutch kit is compatible with the 1995 Suzuki Esteem (SZ1) models and is intended for performance-oriented street and track use. It is a direct replacement upgrade for stock clutch components, designed to withstand increased power and torque demands. Installation involves replacing the existing clutch with this bolt-on assembly, ensuring a secure fit and optimal engagement. The kit includes the pressure plate and race disc, with no additional components required. Ideal for enthusiasts seeking improved clutch performance, durability, and consistent engagement during high-stress driving conditions.

Overview

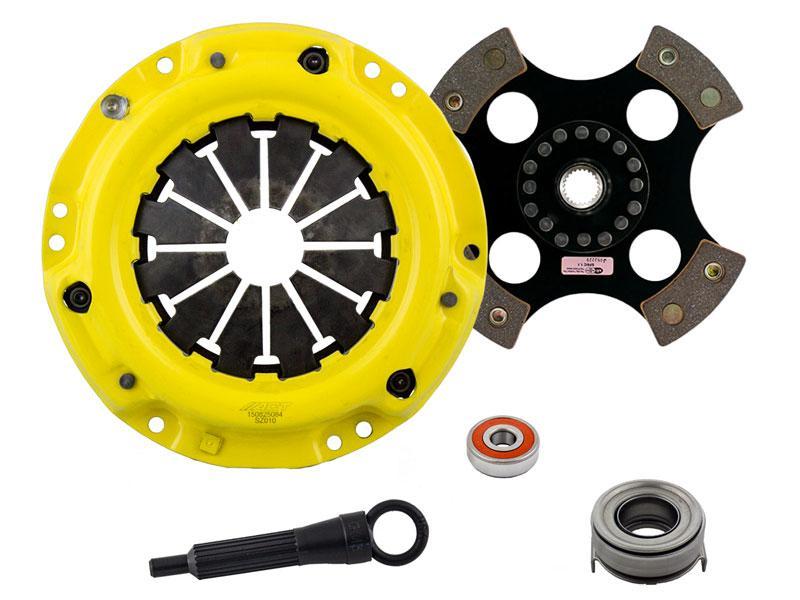

HD/Race Rigid 4 Pad Clutch Kit by ACT

SZ1-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 8.1
  • Torque Capacity (ft/lbs.): 225
  • Torque Capacity Over OE: 92%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 7.5
  • Clutch Disc Diameter (Millimeters): 190
  • Input Shaft Diameter (inches): 0.75
  • Pressure Plate Type: Heavy Duty

Benefits

  • Light to moderate pedal effort
  • Aggressive engagement
  • Increased gear rattle
  • Moderate friction life
  • Rigid design may increase spline wear
  • Uses select ceramic friction materials for high heat tolerance and maximum performance
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1992-1997 Geo Metro
  • 1987-1988 Chevrolet Sprint
  • 1989-2001 Suzuki Swift
  • 1995-2001 Suzuki Esteem

What's In The Box?

  • 1 - ACT HD/Race Rigid 4 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
