• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Multiple Subaru Fitments (SB5-HDR4)
1 1

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Multiple Subaru Fitments (SB5-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Multiple Subaru Fitments (SB5-HDR4)

SB5-HDR4

In stock

$916.00 USD
$1,131.00 USD $916.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit is a high-performance clutch assembly designed for demanding racing applications. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit includes 4-pad rigid race discs made with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built for maximum performance, this clutch kit delivers reliable engagement and longevity for competitive racing or high-stress driving scenarios.

This clutch kit is compatible with multiple Subaru models, suitable for various engine configurations and chassis codes. It is intended for use in street, track, or racing environments where high clamp loads and durability are essential. Designed as a direct replacement or upgrade, the kit offers bolt-on installation with all necessary components included. It is ideal for Subaru vehicles requiring a robust clutch solution capable of handling increased power and demanding driving conditions, ensuring optimal performance and reliability during intense use.

Overview

HD/Race Rigid 4-Pad Clutch Kit by ACT

SB5-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.

All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Feel - Light to moderate pedal effort, aggressive engagement, increased gear rattle
  • Life - Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use - Recommended for race use only
  • ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 2006 - 2021 Subaru WRX
  • 2004 - 2008 Subaru Forester XT
  • 2005 - 2012 Subaru Legacy GT
  • 2005 - 2009 Subaru Outback XT
  • 2004 - 2006 Subaru Baja Turbo
  • 2005 - 2006 Saab 9-2X Aero

Specifications

  • Product Weight (lbs.): 13
  • Disc Type: Rigid Race Disc
  • Disc Material: Ceramic
  • Pad Quantity: 4
  • Pressure Plate Type: Heavy Duty
  • Torque Capacity (Over OE): 69%
  • Torque Capacity (ft/lbs.): 535

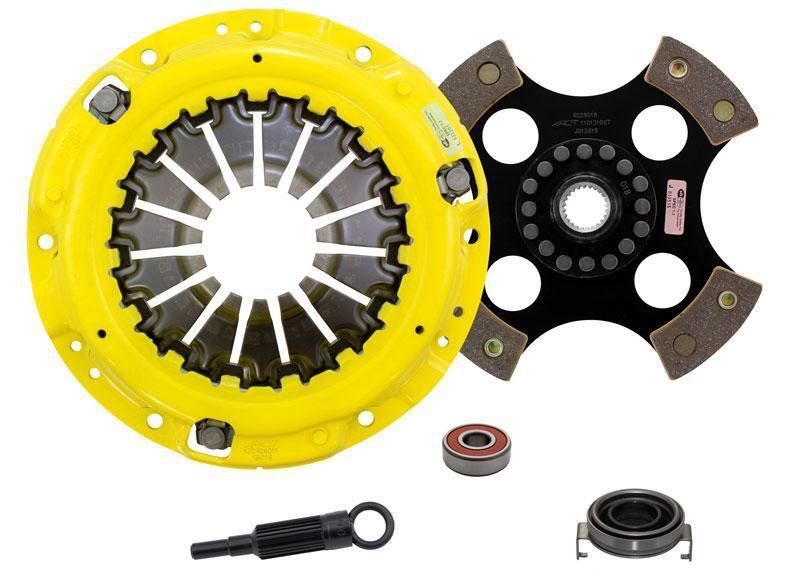

What's In The Box?

  • 1 - 4-Pad Rigid Race Disc
  • 1 - Heavy Duty Pressure Plate
  • 1 - Release Bearing
  • 1 - Alignment Tool

References

Warranty

  • Manufacturer Standard Warranty
