ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Crown (67-70) (T41-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Crown (67-70) (T41-HDR4)

T41-HDR4

In stock

$519.00 USD
$519.00 USD $519.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the Toyota Crown (1967-1970) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad rigid race disc made with high-quality ceramic friction materials, providing excellent grip and heat resistance. Constructed with precision cover stampings, the components deliver rigidity and stability during aggressive driving, making it suitable for racing or heavy-duty applications.

This clutch kit is specifically designed for 1967-1970 Toyota Crown models, compatible with engines and chassis configurations that require a robust, direct replacement setup. It is ideal for track use, high-performance street driving, or applications demanding maximum durability. The installation involves bolt-on replacement of the stock clutch components, ensuring a straightforward upgrade process. The kit includes the pressure plate and race disc, with no additional components required. Suitable for vehicles subjected to high torque loads, this clutch kit enhances performance and longevity under extreme conditions.

Overview

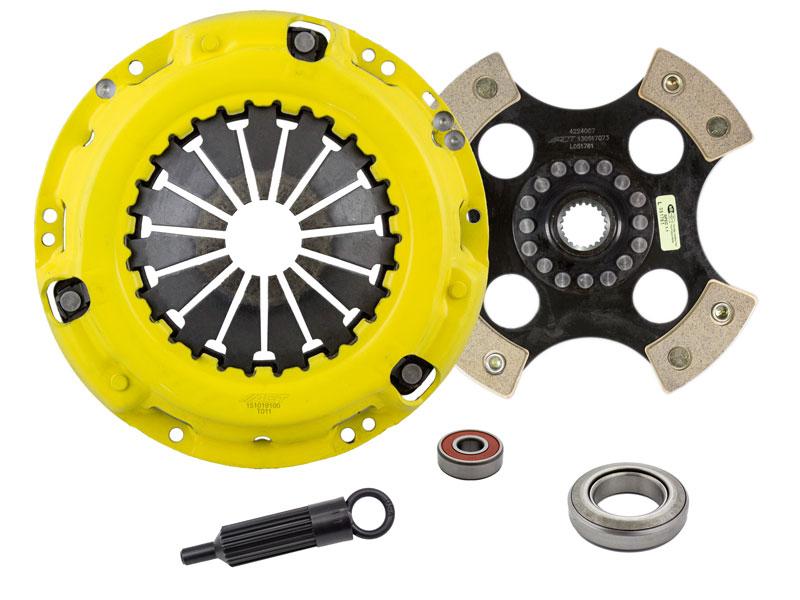

ACT HD/Race Rigid 4 Pad Kit

T41-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1967-1970 Toyota Crown

What's In The Box?

  • Clutch Friction Disc (4224007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB010)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
