• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Corolla (80-82) (TL4-HDR4)
1 1

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Corolla (80-82) (TL4-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Corolla (80-82) (TL4-HDR4)

TL4-HDR4

Out of stock

$511.00 USD
$511.00 USD $511.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built with precision cover stampings, this clutch delivers enhanced rigidity and reliability, making it suitable for aggressive street and race applications.

This clutch kit is compatible with Toyota Corolla models from 1980 to 1982, specifically tailored for vehicles with the TL4 engine configuration. It serves as a direct replacement or upgrade for stock clutch components, offering increased clamping force and durability under high-stress conditions. The kit is ideal for performance enthusiasts seeking improved engagement and longevity in their clutch system. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. Designed for racing, street performance, and heavy-duty use, this clutch kit ensures reliable power transfer and consistent performance.

Overview

ACT HD/Race Rigid 4 Pad Kit

TL4-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.1
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1980-1982 Toyota Corolla

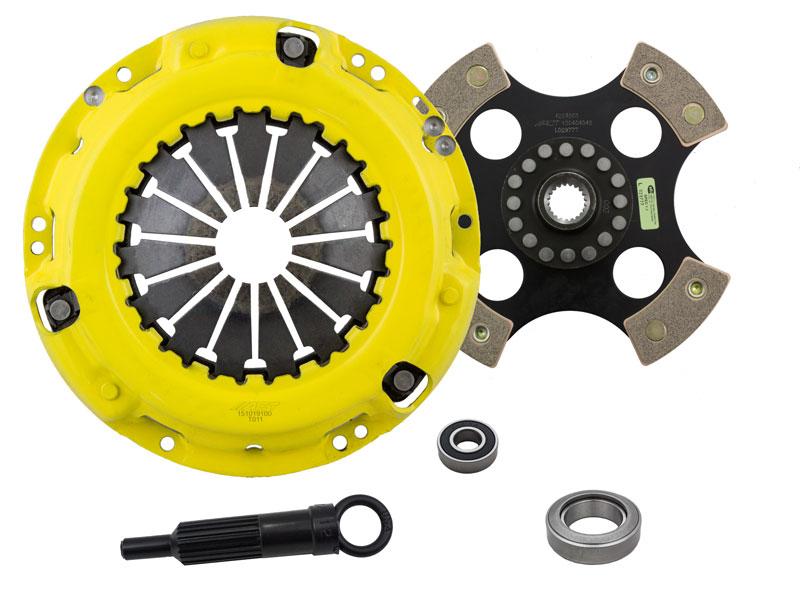

What's In The Box?

  • Clutch Friction Disc (4224003)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1001)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
