ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDR4)

TV1-HDR4

In stock

$445.00 USD
$549.00 USD $445.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for Toyota Vans (1988-1989) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes 4-pad rigid race discs crafted with high-quality ceramic friction materials, providing excellent heat resistance and friction characteristics. Constructed with precision cover stampings, the components deliver rigidity and reliability, making it suitable for aggressive street or race applications.

This clutch kit is specifically designed for 1988-1989 Toyota Vans, offering a direct replacement for stock components. It is ideal for vehicles subjected to increased power, towing, or track use, where enhanced clamping force and durability are essential. The installation involves bolt-on replacement of the existing clutch components, ensuring a straightforward upgrade process. The kit provides all necessary components for a complete clutch overhaul, including the pressure plate and race discs. Suitable for high-performance street driving or racing, this ACT clutch kit delivers improved grip, longevity, and consistent engagement under demanding conditions.

Overview

ACT HD/Race Rigid 4 Pad Kit

TV1-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.4
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1988-1989 Toyota Van

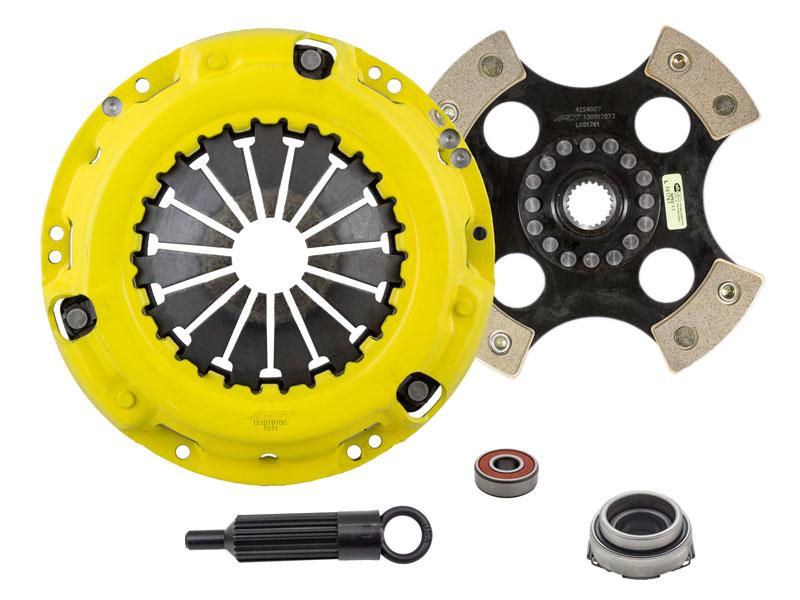

What's In The Box?

  • Clutch Friction Disc (4224007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB444)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
