• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Celica (89-93) (TC4-HDR4)
1 1

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Celica (89-93) (TC4-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Celica (89-93) (TC4-HDR4)

TC4-HDR4

Out of stock

$533.00 USD
$658.00 USD $533.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the Toyota Celica (89-93) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT’s most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Precision cover stampings enhance rigidity and consistency, making this clutch kit ideal for aggressive street driving or track use.

Designed specifically for 1989 to 1993 Toyota Celica models, this clutch kit is a direct replacement for stock components, offering improved performance and longevity. It is suitable for vehicles equipped with stock or mildly modified engines, and is intended for high-performance applications such as racing or spirited driving. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included in the kit. This setup delivers increased clamp force and durability, making it well-suited for drivers seeking reliable, high-performance clutch operation on the street or track.

Overview

ACT HD/Race Rigid 4 Pad Kit

TC4-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 13.1

Applications

  • 1989-1993 Toyota Celica

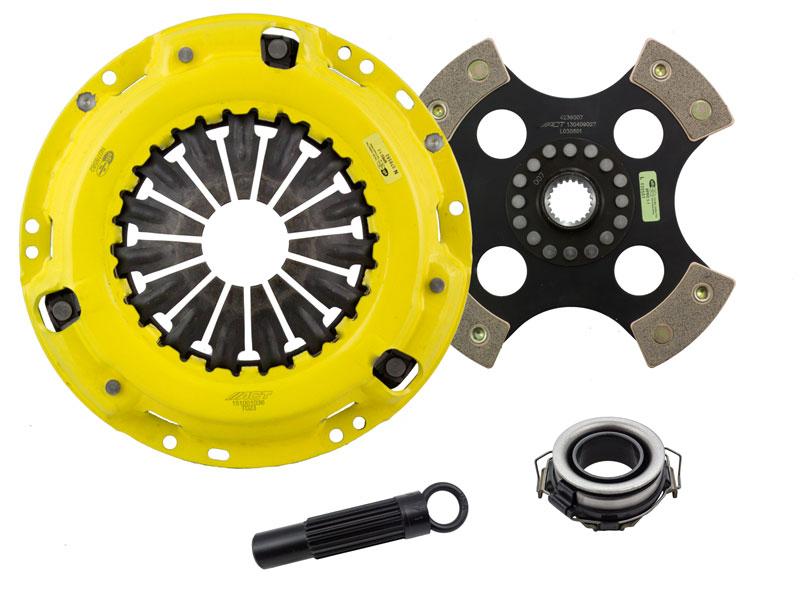

What's In The Box?

  • Clutch Friction Disc (4236007)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023)

References

Warranty

  • Manufacturer 1 Year Warranty
