ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-HDR4)

NA1-HDR4

In stock

$458.00 USD
$565.00 USD $458.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for Nissan Stanza (90-92) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch longevity. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Precision cover stampings contribute to the rigidity and uniformity of the assembly, making it suitable for aggressive street or race applications.

This clutch kit is specifically engineered for 1990-1992 Nissan Stanza models, offering a direct replacement for stock components. It is ideal for enthusiasts seeking increased clamping force and durability for high-performance driving, including track use or heavy-duty street applications. The installation is a bolt-on process, designed to fit seamlessly into the factory clutch setup without modifications. The kit includes all necessary components for a complete upgrade, ensuring reliable engagement and smooth operation under intense conditions. Suitable for vehicles with similar specifications, this clutch kit enhances performance while maintaining drivability and longevity.

Overview

ACT HD/Race Rigid 4 Pad Kit

NA1-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.1
  • Torque Capacity (ft/lbs.): 350
  • Torque Capacity Over OE: 0.97
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1992 Nissan Stanza

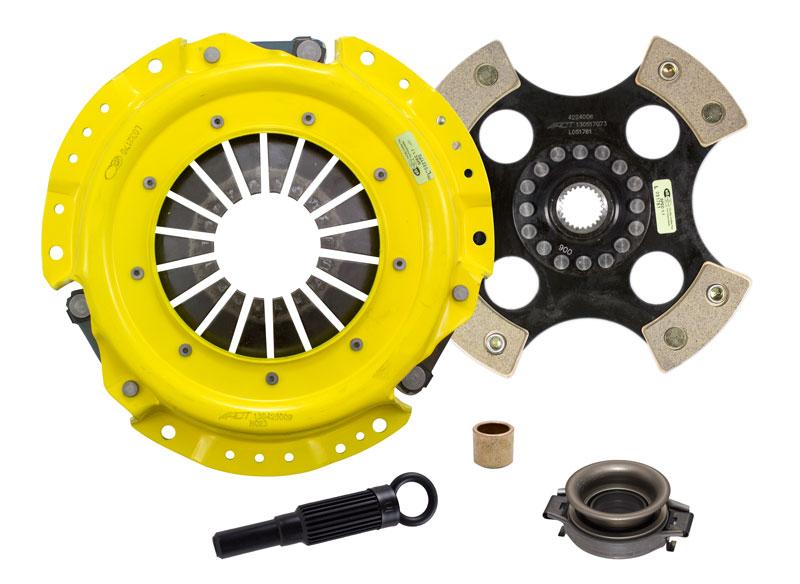

What's In The Box?

  • Clutch Friction Disc (4224006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB816)

References

Warranty

  • Manufacturer 1 Year Warranty
