ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Nissan 240SX (91-94) (NX4-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Nissan 240SX (91-94) (NX4-HDR4)

NX4-HDR4

In stock

$450.00 USD
$555.00 USD $450.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for Nissan 240SX (91-94) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, with precision cover stampings that enhance rigidity. The included 4-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance for aggressive driving. This combination delivers improved torque capacity, responsiveness, and longevity, making it suitable for racing and high-performance street applications.

Designed specifically for 1991–1994 Nissan 240SX models, this clutch kit is compatible with vehicles equipped with the stock or upgraded engines within this chassis. It serves as a direct replacement for the factory clutch, offering increased clamping force and durability for spirited driving, track use, or heavy-duty street performance. Installation is straightforward for experienced technicians, with all necessary components included in the kit. This clutch setup is ideal for enthusiasts seeking a reliable, high-performance upgrade that can withstand increased power levels and aggressive driving styles.

Overview

ACT HD/Race Rigid 4 Pad Kit

NX4-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.2
  • Torque Capacity (ft/lbs.): 350
  • Torque Capacity Over OE: 0.97
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1991-1994 Nissan 240SX

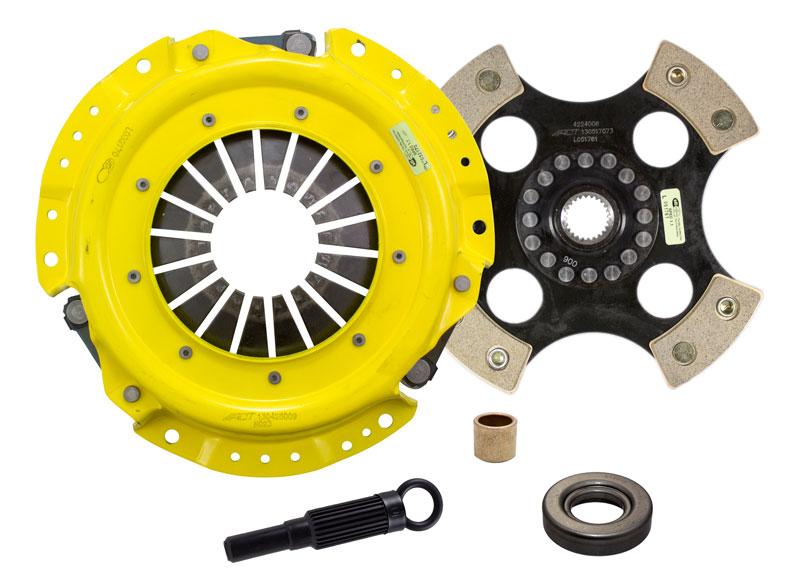

What's In The Box?

  • Clutch Friction Disc (4224006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB810)

References

Warranty

  • Manufacturer 1 Year Warranty
