The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the Hyundai Tiburon (03) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The diaphragm's precision cover stampings enhance rigidity, while the 4-pad rigid race disc incorporates high-quality ceramic friction materials for superior grip and heat resistance. This combination delivers improved torque capacity, responsiveness, and longevity, making it ideal for racing or aggressive street driving.

Designed specifically for the 2003 Hyundai Tiburon, this clutch kit is a direct replacement for stock components, providing a reliable upgrade for enhanced performance. It is suitable for vehicles used in racing, track days, or high-performance street applications where increased clamping force and durability are essential. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with models equipped with the specified engine configuration, this clutch kit offers a robust solution for drivers seeking increased power transfer and clutch reliability under demanding conditions.

Overview

ACT HD/Race Rigid 4 Pad Kit

HY1-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 11.3
  • Torque Capacity (ft/lbs.): 305
  • Torque Capacity Over OE: 0.77
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875

Applications

  • 1996-2006 Hyundai Elantra
  • 1997-2008 Hyundai Tiburon

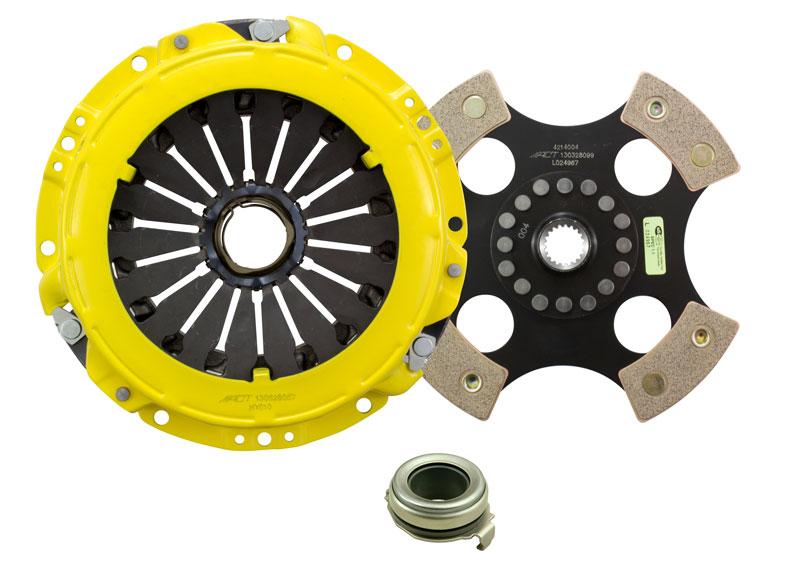

What's In The Box?

  • Clutch Pressure Plate (HY010)
  • Clutch Release Bearing (RB104)
  • Clutch Friction Disc (4214004)

References

Warranty

  • Manufacturer 1 Year Warranty
