• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-HDR4)
1 1

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-HDR4)

NX9-HDR4

Out of stock

$448.00 USD
$553.00 USD $448.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the Nissan 200SX (96) is a high-performance clutch upgrade designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes high-quality, ceramic friction material discs with a 4-pad rigid race configuration, providing excellent grip and heat resistance. Constructed with precision cover stampings, the components deliver rigidity and stability during aggressive driving, making it ideal for track use or high-stress applications.

This clutch kit is specifically designed for the Nissan 200SX (96) with NX chassis code, suitable for models equipped with compatible engines. It serves as a direct replacement or upgrade for stock clutch components, offering increased clamping force and durability for spirited street driving or racing. Installation involves bolt-on replacement of existing clutch parts, with all necessary components included in the kit. The ACT NX9-HDR4 is engineered to handle higher torque loads and aggressive driving styles, making it suitable for enthusiasts seeking enhanced performance and reliability in their vehicle’s clutch system.

Overview

ACT HD/Race Rigid 4 Pad Kit

NX9-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10
  • Torque Capacity (ft/lbs.): 310
  • Torque Capacity Over OE: 0.77
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 18
  • Input Shaft Diameter (in.): 0.8125
  • Alignment Tool Included: Yes

Applications

  • 1991-2002 Infiniti G20
  • 1991-2006 Nissan Sentra
  • 1995-1998 Nissan 200SX
  • 1991-1993 Nissan NX

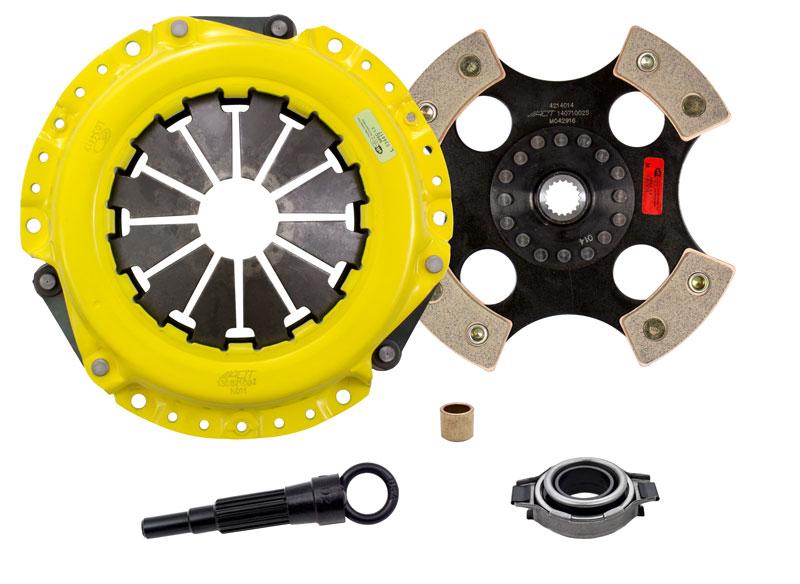

What's In The Box?

  • Clutch Friction Disc (4214014)
  • Clutch Alignment Tool (AT68)
  • Clutch Pressure Plate (N011)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB433)

References

Warranty

  • Manufacturer 1 Year Warranty
