• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Geo Prizm 1991 (TC2-HDR4)
1 1

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Geo Prizm 1991 (TC2-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Geo Prizm 1991 (TC2-HDR4)

TC2-HDR4

In stock

$497.00 USD
$613.00 USD $497.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the 1991 Geo Prizm is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, utilizing an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch longevity. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure durability and consistent performance. Paired with high-quality ceramic friction materials, the 4-pad rigid race disc delivers excellent grip and heat resistance, making it ideal for racing or aggressive street driving. The precision cover stampings contribute to the rigidity and stability of the assembly, providing reliable engagement and smooth operation under high-stress conditions.

This clutch kit is specifically designed for the 1991 Geo Prizm, compatible with models equipped with the appropriate engine and transmission configurations. It serves as a direct replacement or performance upgrade for stock clutch components, suitable for street, track, or racing applications where durability and high performance are required. Installation involves replacing the existing clutch with this bolt-on kit, which includes the pressure plate and race disc. The ACT TC2-HDR4 kit is engineered to withstand high torque loads and intense driving conditions, ensuring consistent power transfer and extended service life for enthusiasts seeking a reliable, high-performance clutch solution.

Overview

ACT HD/Race Rigid 4 Pad Kit

TC2-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 305
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1992-2013 Toyota Corolla
  • 2003-2008 Pontiac Vibe
  • 1991-2005 Toyota Celica
  • 2000-2005 Toyota MR2 Spyder
  • 1991-1997 Geo Prizm
  • 2003-2014 Toyota Matrix

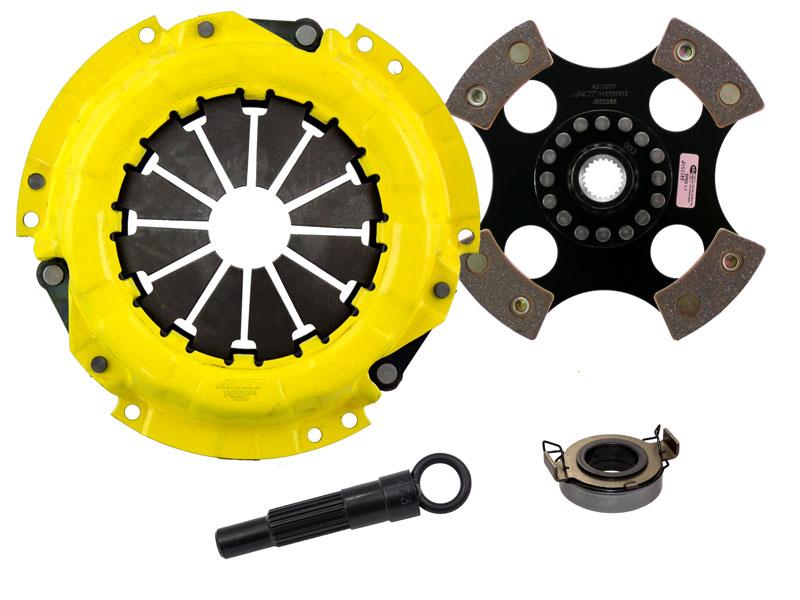

What's In The Box?

  • Clutch Friction Disc (4212003)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T030)

References

Warranty

  • Manufacturer 1 Year Warranty
