ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota 4Runner (1987) (TC5-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota 4Runner (1987) (TC5-HDR4)

TC5-HDR4

In stock

$521.00 USD
$521.00 USD $521.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the Toyota 4Runner (1987) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, with precision cover stampings that enhance rigidity. The included 4-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance for aggressive driving and racing applications.

This clutch kit is specifically engineered for the 1987 Toyota 4Runner, offering a direct replacement for stock components. It is suitable for street, track, or off-road use where increased clamping force and durability are required. The kit is designed for easy bolt-on installation, ensuring compatibility with the stock flywheel and transmission setup. Ideal for enthusiasts seeking improved performance and longevity, this clutch kit delivers reliable engagement and consistent power transfer under high-stress conditions.

Overview

ACT HD/Race Rigid 4 Pad Kit

TC5-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.1
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1977-1981 Toyota Corona
  • 1977-1985 Toyota Celica
  • 1986-1988 Toyota Van
  • 1978-1988 Toyota Pickup
  • 1984-1988 Toyota 4Runner

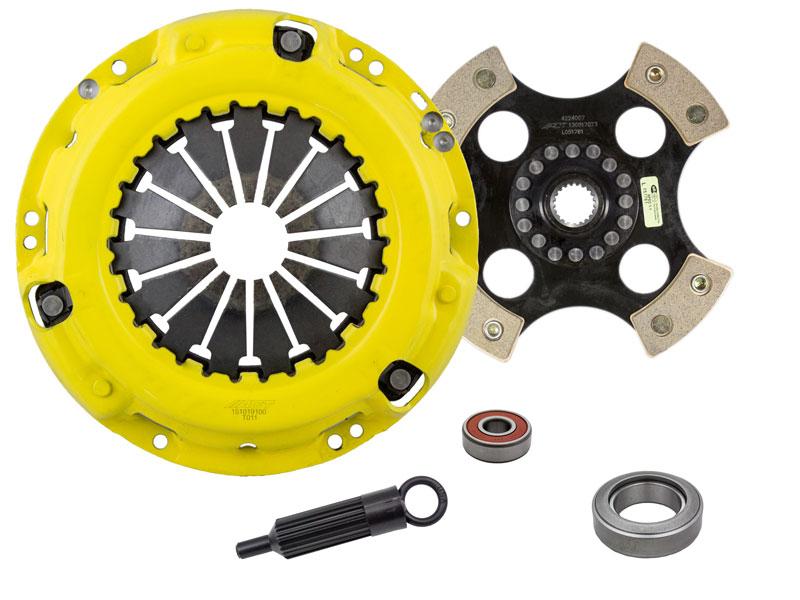

What's In The Box?

  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T011)
  • Clutch Friction Disc (4224007)

References

Warranty

  • Manufacturer 1 Year Warranty
