• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Scion tC (06) (TC7-HDR4)
1 1

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Scion tC (06) (TC7-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Scion tC (06) (TC7-HDR4)

TC7-HDR4

Out of stock

$629.00 USD
$629.00 USD $629.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the Scion tC (06) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, with precision cover stampings that enhance rigidity and stability during operation. The included 4-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance for aggressive driving and racing applications. Overall, this clutch kit delivers increased clamping force and reliability for enhanced vehicle performance.

Designed specifically for the 2006 Scion tC, this clutch kit is a direct replacement upgrade suitable for street and track use. It is compatible with models equipped with the stock engine and transmission, offering a bolt-on installation that does not require modifications. The kit includes the heavy-duty pressure plate and race disc, ensuring a complete upgrade for improved power transfer and durability under high-stress conditions. Ideal for enthusiasts seeking increased performance and longevity, this clutch kit is engineered to withstand aggressive driving, racing, or heavy-duty applications on the same vehicle platform.

Overview

ACT HD/Race Rigid 4 Pad Kit

TC7-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.4
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 0.65
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2007-2008 Toyota Camry
  • 2009-2012 Toyota Corolla
  • 2009-2013 Toyota Matrix
  • 2006-2010 Scion tC
  • 2008-2015 Scion xB

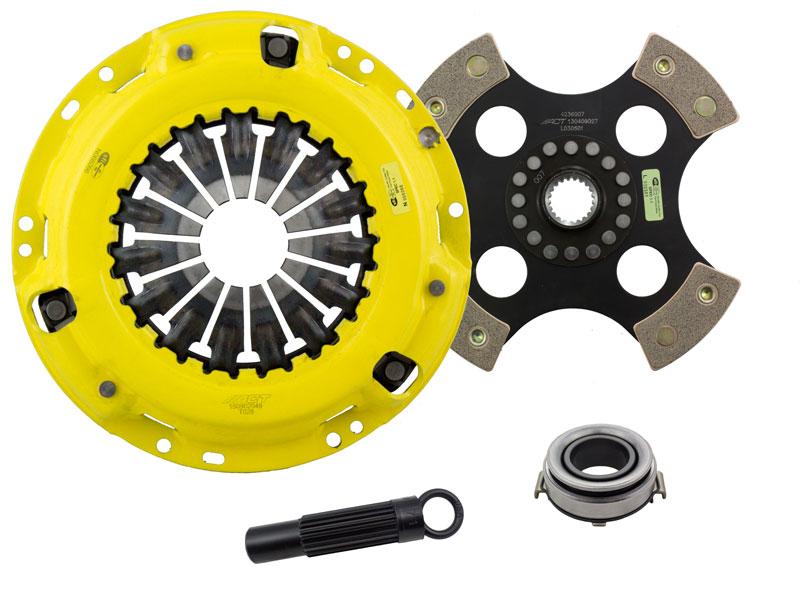

What's In The Box?

  • Clutch Friction Disc (4236007)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB084)
  • Clutch Pressure Plate (T028)

References

Warranty

  • Manufacturer 1 Year Warranty
