• ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Scion tC (12) (TC8-HDR4)
1 1

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Scion tC (12) (TC8-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Scion tC (12) (TC8-HDR4)

TC8-HDR4

Out of stock

$557.00 USD
$557.00 USD $557.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the 2012 Scion tC is a high-performance upgrade designed for demanding driving conditions. This kit includes ACT's most popular Heavy Duty pressure plate, featuring an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit also incorporates high-quality, ceramic friction material on the 4-pad rigid race disc, providing excellent grip and heat resistance. Constructed with precision cover stampings, the components deliver rigidity and reliability for aggressive driving and racing applications.

This clutch kit is specifically engineered for the 2012 Scion tC, offering a direct replacement for stock components. It is suitable for street, track, or performance driving where increased clamping force and durability are required. The installation involves replacing the existing clutch with this bolt-on assembly, ensuring compatibility with the vehicle's transmission. The kit includes the pressure plate, race disc, and necessary hardware, making it a comprehensive upgrade. Designed for high-performance use, this clutch kit enhances power transfer, reduces slip, and improves overall drivability under demanding conditions.

Overview

ACT HD/Race Rigid 4 Pad Kit

TC8-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.7
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 0.65
  • Pressure Plate Type: Heavy Duty
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 2011-2016 Scion tC
  • 2010-2011 Toyota Camry

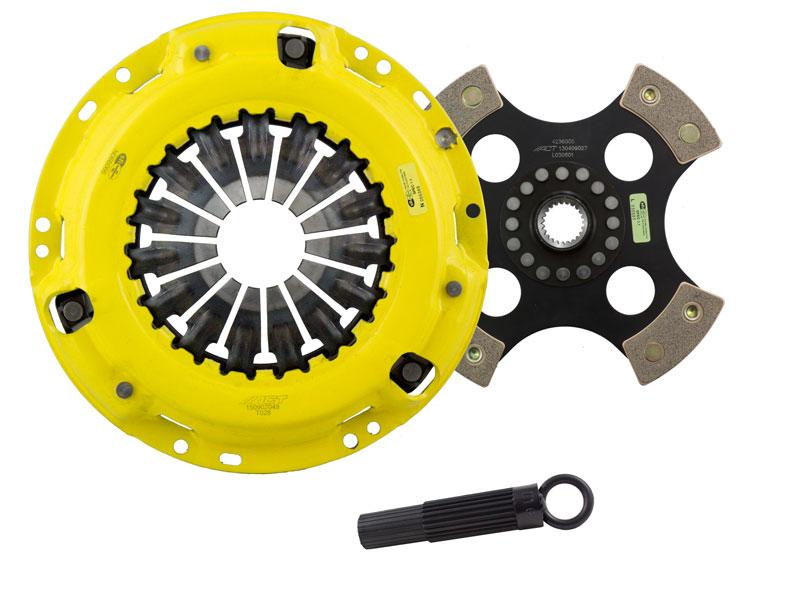

What's In The Box?

  • Clutch Friction Disc (4236008)
  • Clutch Alignment Tool (AT116)
  • Clutch Pressure Plate (T028)

References

Warranty

  • Manufacturer 1 Year Warranty
