ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Camry (02) (TY4-HDR4)

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit | Toyota Camry (02) (TY4-HDR4)

TY4-HDR4

Out of stock

$533.00 USD
$658.00 USD $533.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 4 Pad Clutch Kit for the Toyota Camry (02) is a high-performance clutch upgrade designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 4-pad rigid race disc made from high-quality ceramic friction materials, providing excellent grip and heat resistance. Constructed with precision cover stampings, the components deliver rigidity and reliability for aggressive driving and racing applications.

This clutch kit is specifically engineered for the 2002 Toyota Camry, offering a direct replacement for stock components. It is suitable for street, track, and performance driving where increased clamping force and durability are essential. The installation involves replacing the existing clutch assembly with this bolt-on kit, which includes the pressure plate and disc. Designed to handle higher torque loads, it is ideal for enthusiasts seeking improved performance and longevity from their clutch system. Compatibility is optimized for the specified vehicle, ensuring reliable engagement and smooth operation during intense driving conditions.

Overview

ACT HD/Race Rigid 4 Pad Kit

TY4-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.1
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1992-1993 Lexus ES300
  • 1992-2002 Toyota Camry
  • 1999-2002 Toyota Solara

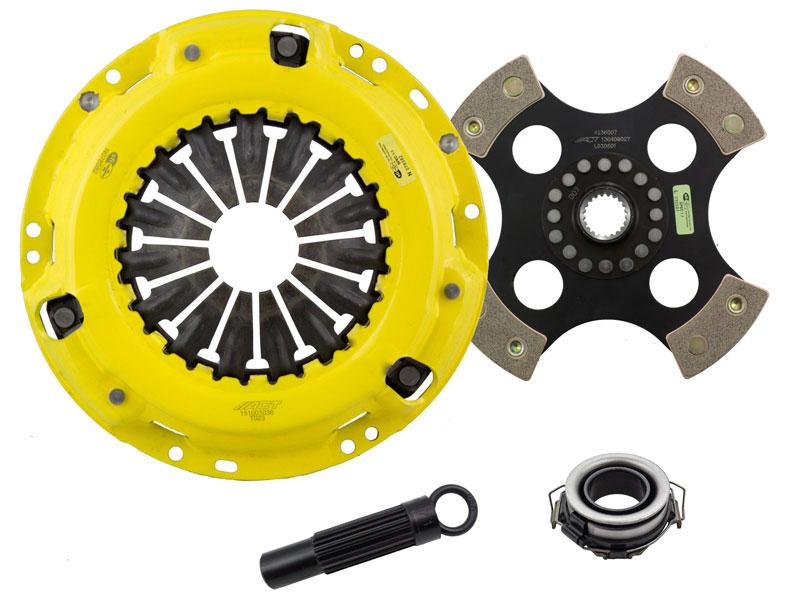

What's In The Box?

  • Clutch Friction Disc (4236007)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023)

References

Warranty

  • Manufacturer 1 Year Warranty
