• ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-HDR6)
1 1

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-HDR6)

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-HDR6)

FM4-HDR6

Out of stock

$457.00 USD
$564.00 USD $457.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding racing applications. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit includes a 6-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built with precision cover stampings, this clutch offers enhanced rigidity and stability, making it ideal for high-stress driving scenarios.

This clutch kit is compatible with 1986-1995 Ford Mustangs, making it suitable for various engine configurations within this model range. It is designed as a direct replacement or upgrade for stock clutch components, offering improved performance for street or race use. The kit is intended for vehicles subjected to increased power and torque demands, such as those used in racing or spirited driving. Installation involves bolt-on replacement of existing clutch parts, and the kit includes all necessary components for a complete upgrade. Suitable for track days, drag racing, or aggressive street driving, this clutch assembly delivers reliable, high-performance engagement.

Overview

ACT HD/Race Rigid 6 Pad Kit

FM4-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 20.1
  • Torque Capacity (ft/lbs.): 620
  • Torque Capacity Over OE: 0.84
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1986-1995 Ford Mustang LX, GT, & SVT Cobra

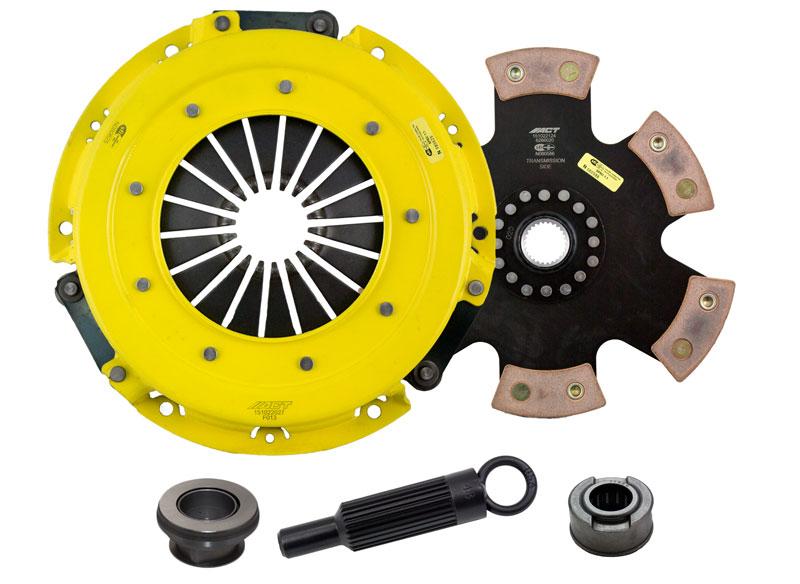

What's In The Box?

  • Clutch Friction Disc (6266020)
  • Clutch Alignment Tool (ATF048)
  • Clutch Pressure Plate (F013)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
