• ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDR6)
1 1

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDR6)

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota Van (88-89) (TV1-HDR6)

TV1-HDR6

Out of stock

$475.00 USD
$586.00 USD $475.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit for Toyota Vans (1988-1989) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad rigid race disc constructed with high-quality ceramic friction materials and a chrome-moly hub, providing excellent heat resistance and friction characteristics. This assembly is engineered to deliver reliable power transfer, improved torque capacity, and enhanced durability for aggressive driving or racing applications.

Designed specifically for 1988-1989 Toyota Vans, this clutch kit is a direct replacement for stock components, offering a bolt-on upgrade for increased performance. It is suitable for street, track, or off-road use where high clamp load and durability are required. The kit is compatible with vehicles equipped with the original factory flywheel and requires standard installation procedures. It provides a robust solution for drivers seeking a reliable, high-performance clutch that can handle increased power and demanding driving conditions without sacrificing longevity or smooth engagement.

Overview

ACT HD/Race Rigid 6 Pad Kit

TV1-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.9
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 0.89
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1988-1989 Toyota Van

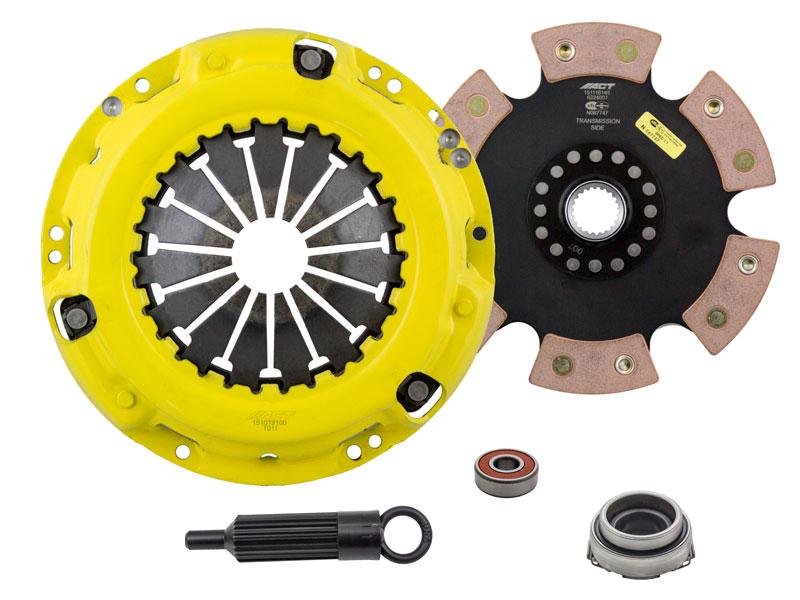

What's In The Box?

  • Clutch Friction Disc (6224007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB444)
  • Clutch Pressure Plate (T011)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
