• ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Honda Civic (89-91) (HW4-HDR6)
1 1

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Honda Civic (89-91) (HW4-HDR6)

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Honda Civic (89-91) (HW4-HDR6)

HW4-HDR6

In stock

$476.00 USD
$588.00 USD $476.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit for Honda Civic (89-91) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built with precision cover stampings, this clutch offers enhanced rigidity and stability, making it suitable for aggressive street or race applications.

This clutch kit is specifically designed for 1989-1991 Honda Civic models, compatible with various engine configurations within this chassis. It serves as a direct replacement or upgrade for stock clutch components, ideal for street performance, track use, or spirited driving. Installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included in the kit. The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit delivers increased clamping force and durability, ensuring reliable performance under high-stress conditions for Honda Civic owners seeking a robust, long-lasting clutch solution.

Overview

ACT HD/Race Rigid 6 Pad Kit

HW4-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 10.3
  • Torque Capacity (ft/lbs.): 300
  • Torque Capacity Over OE: 0.96
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic

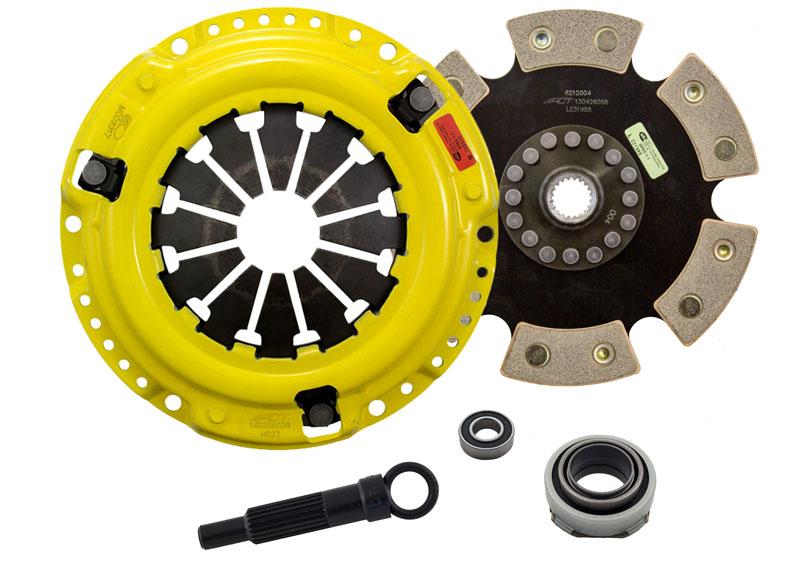

What's In The Box?

  • Clutch Pressure Plate (H023)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)
  • Clutch Friction Disc (6212004)
  • Clutch Alignment Tool (AT20)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
