ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota Celica (89-93) (TC4-HDR6)

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Toyota Celica (89-93) (TC4-HDR6)

TC4-HDR6

In stock

$551.00 USD
$680.00 USD $551.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit for the Toyota Celica (89-93) is a high-performance clutch upgrade designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad rigid race disc made with high-quality ceramic friction materials, providing excellent grip and heat resistance. Constructed with precision cover stampings, this clutch assembly offers enhanced rigidity and reliability for aggressive driving and racing applications.

This clutch kit is specifically engineered for 1989 to 1993 Toyota Celica models, compatible with various engine configurations within this chassis. It serves as a direct replacement or performance upgrade for stock clutch components, suitable for street and track use. Installation involves bolt-on replacement of the existing clutch system, with all necessary components included in the kit. Designed for high-performance driving, this clutch kit delivers increased holding capacity, improved pedal feel, and longer service life, making it ideal for enthusiasts seeking durability and consistent power transfer in their Celica.

Overview

ACT HD/Race Rigid 6 Pad Kit

TC4-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.7
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 0.69
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1989-1993 Toyota Celica

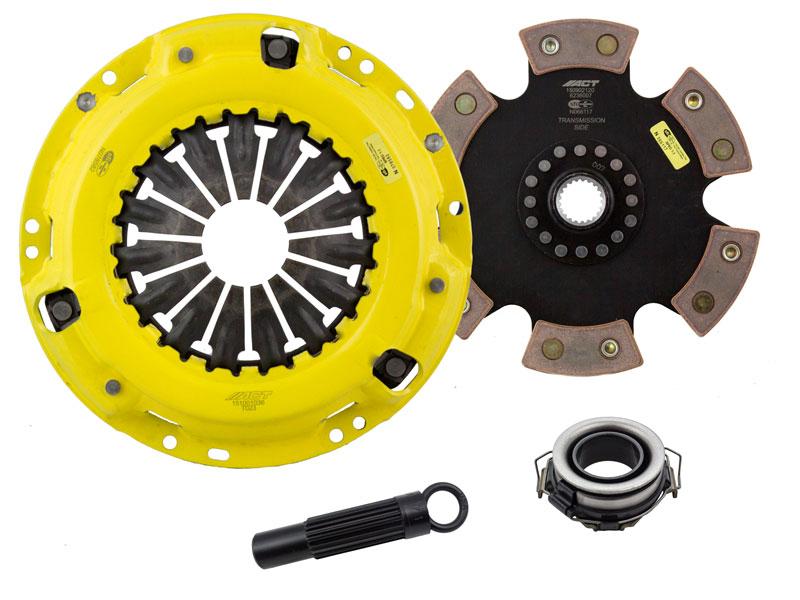

What's In The Box?

  • Clutch Friction Disc (6236007)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023)

References

Warranty

  • Manufacturer 1 Year Warranty
