| Year | Make | Model |
|---|---|---|
| 1996 - 2001 | Ford | Mustang GT |
| 2001 | Ford | Mustang GT Bullitt |
| 1996 - 1998 | Ford | Mustang SVT Cobra |
ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Ford Mustang (96-01) (FM8-HDR6)
ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Ford Mustang (96-01) (FM8-HDR6)
SKU:FM8-HDR6
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit for Ford Mustang (96-01) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate is heat-treated through a four-stage process to ensure durability and consistent performance. The kit includes 6-pad rigid race discs made with high-quality ceramic friction materials, providing excellent grip and heat resistance. Constructed with precision cover stampings, the components deliver rigidity and stability during aggressive driving, making it suitable for racing and high-performance street use.
This clutch kit is specifically engineered for 1996 to 2001 Ford Mustangs, compatible with various engine configurations within this model range. It serves as a direct replacement or upgrade for stock clutch systems, offering increased clamping force and durability under high-stress conditions. The kit is ideal for track days, spirited driving, or applications requiring enhanced holding capacity. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included for a straightforward upgrade. Designed to withstand rigorous use, this clutch kit enhances performance and reliability for Mustang enthusiasts seeking a robust, race-ready clutch solution.
Share
Overview
Overview
ACT HD/Race Rigid 6 Pad Kit
FM8-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Features
- Product Weight (lbs.): 20.1
- Torque Capacity (ft/lbs.): 620
- Torque Capacity Over OE: 0.84
- Pilot Bushing Included: Yes
- Pressure Plate Type: Heavy Duty
- Release Bearing Included: Yes
- Clutch Disc Diameter (in.): 10.5
- Clutch Disc Diameter (mm): 266
- Disc Material: Ceramic
- Input Spline Quantity: 26
- Input Shaft Diameter (in.): 1.125
- Alignment Tool Included: Yes
Applications
- 1996-2001 Ford Mustang GT

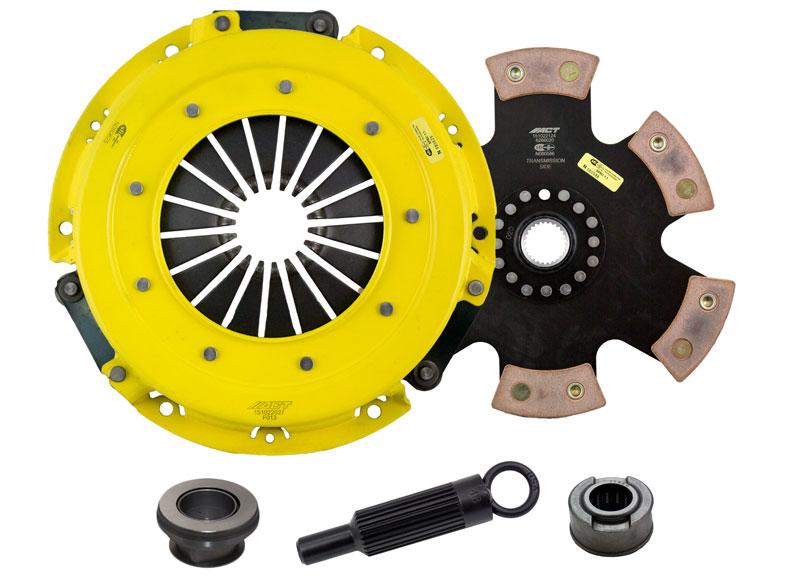

What's In The Box?
- Clutch Friction Disc (6266020)
- Clutch Alignment Tool (ATF048)
- Clutch Pressure Plate (F013)
- Clutch Pilot Bearing (PB1019)
- Clutch Release Bearing (RB1714)
References
Warranty
- Manufacturer 1 Year Warranty
