ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Ford Mustang (99-04) (FM9-HDR6)

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Ford Mustang (99-04) (FM9-HDR6)

FM9-HDR6

In stock

$589.00 USD
$727.00 USD $589.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit for the Ford Mustang (99-04) is a high-performance clutch assembly designed for demanding driving conditions. It features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, with precision cover stampings that enhance rigidity. The kit includes 6-pad rigid race discs made from high-quality ceramic friction materials, providing excellent grip and heat resistance for aggressive driving and racing applications.

This clutch kit is specifically engineered for 1999 to 2004 Ford Mustang models, offering a direct upgrade for enhanced performance. It is suitable for street, track, or drag racing use, delivering increased clamping force and durability under high-stress conditions. The installation is a bolt-on process, designed to replace the stock clutch components seamlessly. The kit provides all necessary components for a complete upgrade, ensuring reliable engagement and improved power transfer for high-performance driving scenarios.

Overview

ACT HD/Race Rigid 6 Pad Kit

FM9-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 23.8
  • Torque Capacity (ft/lbs.): 770
  • Torque Capacity Over OE: 0.58
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 11
  • Clutch Disc Diameter (mm): 280
  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1999-2004 Ford Mustang GT & SVT Cobra

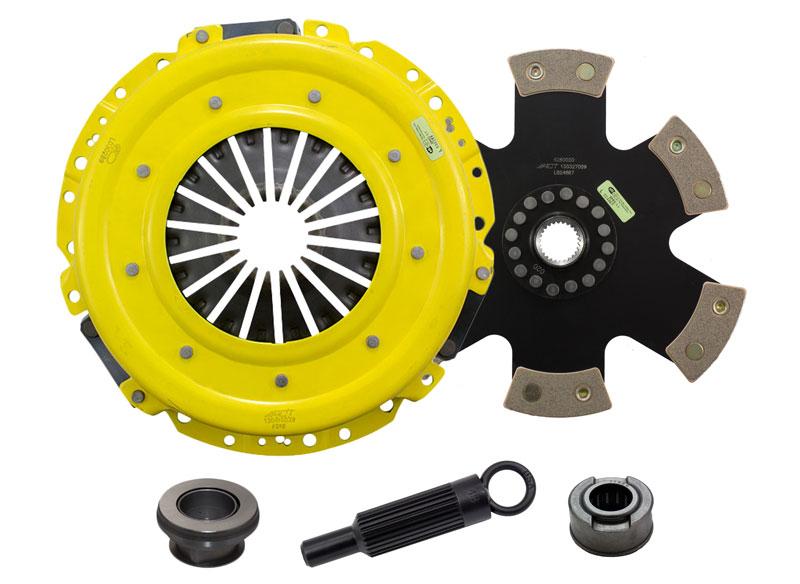

What's In The Box?

  • Clutch Friction Disc (6280020)
  • Clutch Alignment Tool (ATF048)
  • Clutch Pressure Plate (F015)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
