| Year | Make | Model |
|---|---|---|
| 1996 - 1998 | Hyundai | Elantra Base |
| 1996 - 1999 | Hyundai | Elantra GL |
| 1996 - 2006 | Hyundai | Elantra GLS |
| 2001 - 2006 | Hyundai | Elantra GT |
| 2006 | Hyundai | Elantra Limited |
| 1997 - 2001 | Hyundai | Tiburon Base |
| 2003 - 2004 | Hyundai | Tiburon Base |
| 1997 - 1999 | Hyundai | Tiburon FX |
| 2005 - 2008 | Hyundai | Tiburon GS |

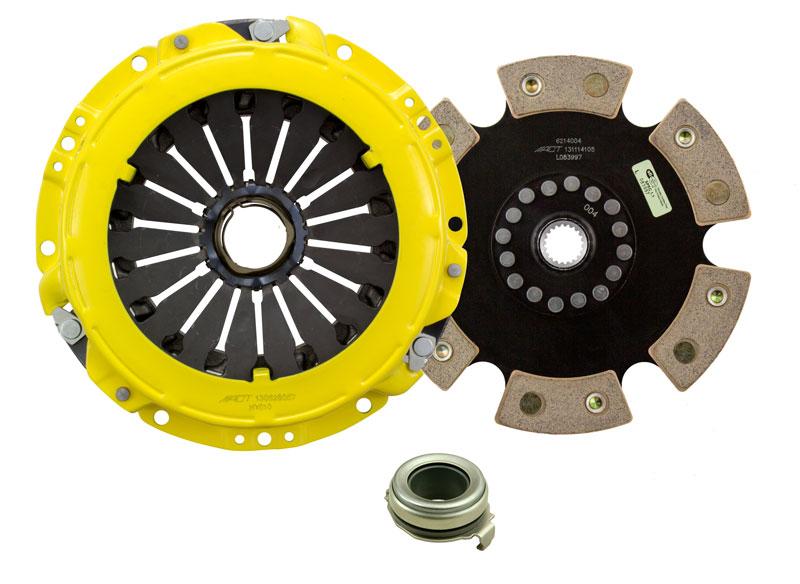

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Hyundai Tiburon (03) (HY1-HDR6)
ACT Heavy Duty Race Rigid 6 Pad Clutch Kit | Hyundai Tiburon (03) (HY1-HDR6)
SKU:HY1-HDR6
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ACT Heavy Duty Race Rigid 6 Pad Clutch Kit for the Hyundai Tiburon (03) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features ACT's most popular Heavy Duty pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes a 6-pad rigid race disc constructed with high-quality ceramic friction materials and a chrome-moly hub, providing excellent heat resistance and friction characteristics. Built for strength and reliability, this clutch kit delivers enhanced torque capacity and improved pedal feel, making it ideal for racing or aggressive street driving.
Designed specifically for the 2003 Hyundai Tiburon, this clutch kit is a direct replacement for stock components, ensuring a straightforward installation. It is suitable for vehicles used in high-performance applications, including track days and spirited driving, where increased clamping force and durability are essential. The kit is engineered to fit the stock flywheel and transmission setup, providing a bolt-on upgrade without modifications. Whether for racing or heavy-duty street use, this clutch kit offers increased holding capacity and longevity, making it a reliable choice for enthusiasts seeking improved clutch performance in their Tiburon.
Share
Overview
Overview
ACT HD/Race Rigid 6 Pad Kit
HY1-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Features
- Product Weight (lbs.): 11.9
- Torque Capacity (ft/lbs.): 305
- Torque Capacity Over OE: 0.77
- Pressure Plate Type: Heavy Duty
- Release Bearing Included: Yes
- Clutch Disc Diameter (in.): 8.4
- Clutch Disc Diameter (mm): 214
- Disc Material: Ceramic
- Input Spline Quantity: 20
- Input Shaft Diameter (in.): 0.875
Applications
- 1996-2006 Hyundai Elantra
- 1997-2008 Hyundai Tiburon
What's In The Box?
- Clutch Friction Disc (6214004)
- Clutch Pressure Plate (HY010)
- Clutch Release Bearing (RB104)
References
Warranty
- Manufacturer 1 Year Warranty
